Vermeer TR6450 Trommel Screen

Vermeer designs new TR6450 Trommel Screen featuring a 20-foot long with a 6.5-foot diameter quick-change tension screen drum, an adjustable drum speed from 0 to 25 revolutions per minute and an 120-horsepower Cat 3.6L Tier 4F (Stage V) diesel engine.

20 01435 Vmrf Tr6450 Press Release 12 03 20
Vermeer Corporation
Vermeer Standard Lockup 2clr Flat

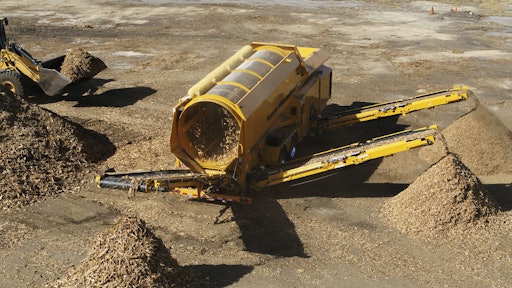

The TR6450 trommel screen features adjustable front-fines, rear-fines and overs conveyors for efficient multi-product production.

  • 20-ft.-long, 6.5-ft.-diameter quick-change tension screen drum
  • Sorts up to 180 cu. yds. per hour with .5-in. screens installed and material with moisture less than 40%
  • 120-hp Caterpillar 3.6L Tier 4 Final diesel engine
  • Drum speed can be adjusted from 0 to 25 rpm based on material type and moisture content
  • Front fines conveyor can be removed completely and its auxiliary hydraulics used to power other equipment like an air separator
  • Hopper infeed height of 9 ft. 6 in. from ground level at operating incline and capacity of 6.5 cu. yds. enable quick loading cycle times
  • ACS controls system provides ability to adjust conveyor heights and drum speeds from a machine-mounted DP10 display or handle transceiver remote
  • Side door access to the drum body from the ground allows for quick, efficient screen or drum changes and maintenance access
  • Foldout motor compartment provides access to the engine’s backside and various access points to critical areas enable access for servicing
