EarthPro Series DD-2024

Earthproseriesdd2024 10091611

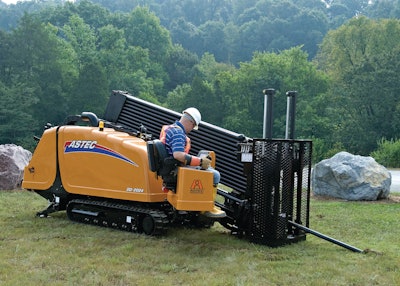

The EarthPro Series DD-2024 compact horizontal directional drill delivers 20,000 lbs. of thrust/pullback force with up to 2,400 ft.-lbs. of rotary torque.

  • 83-hp Cummins B3.3C turbocharged diesel engine
  • Floating carriage offers two speeds, including a 120-fpm fast mode
  • Onboard mud pump provides flows of 15 gpm at 1,250 psi
  • Quad rack-and-pinion drive with adjustable force limiter
  • Es!Lok system integrated into the drill controls for added safety
  • Additional strike alert system with voltage sensor
