The new system for replacing 1/2- to 4-in. natural gas distribution pipe allows contractors to easily replace worn tooling and choose from a selection of cable size and winch options.
The new system for replacing 1/2- to 4-in. natural gas distribution pipe allows contractors to easily replace worn tooling and choose from a selection of cable size and winch options.
Hht Boxed Logo 596505973e0cc

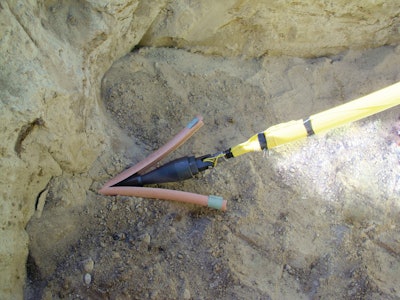

HammerHead Trenchless Equipment has developed a modular system for replacing 1/2- to 4-in. natural gas distribution pipe. Used in conjunction with the company's line of cable winches, the tool string components include expanders, connectors and splitting tools with replaceable hardened-steel blades.

  • Re-engineered tools allow easy replacement of worn tooling and provide a choice of cable size and winch options
  • Integrated swivel design eliminates torque on replacement pipe as it is installed during pullback
  • 12-ton HydroGuide HG12 pulling winch with self-deploying downrigger simplifies setup and an adjustable boom can be set to the required depth without jacking up the machine
  • All winch systems include an optional ESID system (electrical strike identification device)
  • Can be used to install sleeves to contain individual gas pipes or to install mains and services, as well as upsize an existing line to increase its capacity
