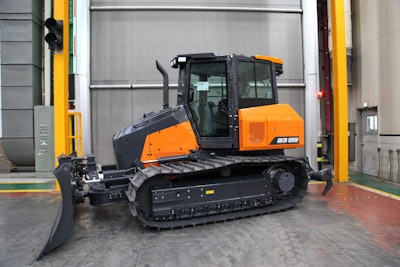

DD100

The Doosan DD100 dozer delivers 122 HP of driving and pushing performance on construction sites. This machine features a dual-single flange-type roller with several track guard options. The dozer has a Doosan engine with maintenance access points and does not require the use of a diesel particulate filter to meet current emission standards.

For operator controls, the DD100 features an accessible 8-in.smart touch display. A rugged cab offers visibility with minimized front pillars, maximum glass area and a standard rearview camera — plus LED lights and front, rear and side wiper blades. Doosan DD100 owners can add 3D machine guidance and 3D machine control features as an option.

Specifications

• Horsepower: 122 HP (91 kW)
• Operating weight: 25,309 lbs. (11,480 kgs)
• Blade capacity: 3 cu. yd. (2.3 m3)
• Blade height: 3-ft. 7-in. (1.1 m)
• Blade width: 8-ft. 10-in. (2.7 m)
• Blade angle: 22.5 degrees
• Drawbar pull: 33,721 lbf. (15,296 kgf)
• Track length: 7-ft. 7-in. (2.3 m)
• Travel speed, max: 5.7 mph (9.2 km/hr)
