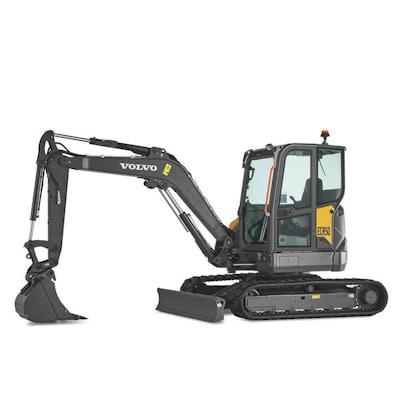

VOLVO ECR50
With zero tail swing, the F-generation ECR50 is the perfect choice when working in confined spaces. This true 5t machine offers superior stability and best-in class lifting capacity. With intuitive and easy-to-use controls, operators can quickly get to grips with the machine and easily work with a variety of attachments. Durable by design, easy servicing and other smart features ensure low operating costs.
THE ULTIMATE ALL-ROUNDER
With zero tail swing, the F-generation ECR50 is the perfect choice when working in confined spaces. This true 5t machine offers superior stability and best-in class lifting capacity. With intuitive and easy-to-use controls, operators can quickly get to grips with the machine and easily work with a variety of attachments. Durable by design, easy servicing and other smart features ensure low operating costs.
TECHNICAL SPECIFICATIONS FOR ECR50
Here are the key specifications for this product model.
METRIC IMPERIAL
Product technical designation ECR50F Engine D2.4H Gross power 31.2 kW Net power 30.7 kW ...at engine speed 2,200 rpm Operating weight 5,050 kg Bucket capacity 0.11 m³ Travel speed, low / high 2.7 / 4.4 km/h Slewing speed 8.5 rpm Breakout force 36.2 kN Tear out force (arm breakout force) 25.9 kN Overall width 2,000 - 0 mm Overall length 5,198 mm Main hydraulic pump max. flow 120 l/min Boom swing angle, left / right 75 / 55 degree
BIG VERSATILITY, LOW OPERATING COST
The zero tail swing radius of the F-generation ECR50 enables easy access and work in confined spaces, while also reducing the risk of machine damage. The in-track boom swing ensures the swing post and cylinder remain within the track width when digging in offset alongside obstacles. Reinforced digging equipment, undercarriage and hoods further contribute towards outstanding durability.
INTUITIVELY EFFICIENT
Quickly and easily get to grips with the F-generation ECR50. With the intuitive jogwheel and 5” color display, operators benefit from easy-to-navigate menus. Achieve precise and efficient work with ease thanks to the proportional fingertip controls, large and easy to control travel pedals and automatic two-speed travel.
TRUE 5T PERFORMER
Take on tough work with confidence and control. With best-in-class lifting capacity, the F-generation ECR50 is a true 5t machine. Outstanding stability and hydraulic power contribute towards unrivalled digging performance, lifting capacity and rimpull.
SWITCH IT UP
Changing between hydraulic attachments is as easy as child's play. In the F-generation ECR50 you can pre-program the hydraulic settings best suited to all your attachments in just a few steps. You can then choose whether operators select pre-defined settings only, or leave the option for operators to make final hydraulic adjustments from the cab.
MAXIMUM UPTIME
Spend less time carrying out maintenance. A 50-hour greasing interval, easily accessed service points and wide-opening engine hood all help to keep uptime to a maximum. With auto engine shutdown, hours not worked are not recorded, keeping your machine efficient for longer while reducing maintenance costs. The patented multifunction hydraulic oil filter, provides outstanding protection to the hydraulic system.
