COMPACT EXCAVATORS
VOLVO ECR58

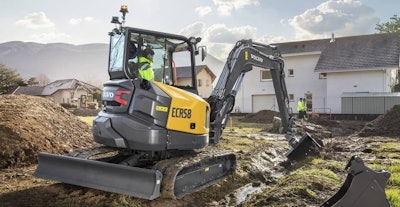

Volvo Compact Excavator ECR58 View all images and videos
12,875 lbs 48 hp 0.15 yd³ The F-generation ECR58 has been expertly designed to provide outstanding levels of operator comfort and delivers the performance to match. Superior stability, breakout force, tear out force and lifting capabilities result in fast cycle times, even when taking on the toughest tasks. Highly customizable auxiliary hydraulic settings support quick and easy attachment changes, helping you achieve top results across a wide range of applications.
TECHNICAL SPECIFICATIONS FOR ECR58
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
METRIC IMPERIAL
Product technical designation ECR58F Engine Volvo D2.6H Gross power 48 hp Net power 48 hp Engine speed at max engine torque 2,200 rpm Operating weight 12,875 lbs Bucket capacity 0.15 yd³ Travel speed, low / high 1.6 / 2.8 mph Slewing speed 8.7 rpm Breakout force 9,422 lbf Tear out force (arm breakout force) 6,387.3 lbf Overall width 6′ 7.0″ ft in Overall length 17′ 0″ ft in Main hydraulic pump max. flow 37.8 gal/min Boom swing angle, left / right 75 / 55 degree
THE OPERATOR’S CHOICE
Step inside the most spacious cab in the industry. Designed to offer the highest levels of operator convenience, the Volvo cab features efficient soundproofing, updated ergonomic controls, numerous storage areas and 12V and USB ports. The multi-adjustable seat and console, both mounted on the same suspension, provide excellent shock and vibration absorption. A fully opening front window and slide side window further add to comfort and visibility.
Volvo Compact Excavator ECR50 ECR58
PRECISION CONTROLS
Whether for fast bulk digging or precise levelling, the ECR58’s new hydraulic system provides superb combined operations. Operate hydraulic attachments with precision thanks to the proportional fingertip controls. The automotive style jogwheel and 5” color display enable intuitive navigation through the menus for further fine tuning, allowing the ECR58 to be adapted to any job requirement.
Volvo Compact Excavator ECR58
PROFIT BOOSTING TECHNOLOGY
A number of intelligent features combine to deliver outstanding fuel efficiency, including the advanced hydraulic system with load sensing and flow sharing. ECO mode further reduces fuel consumption by up to 10% and auto idle eliminates unnecessary fuel consumption. With auto engine shutdown, hours which are not worked are not recorded, reducing maintenance costs while contributing to a higher resale value.
Volvo Compact Excavator ECR58
MACHINE MONITORING MADE EASY
With CareTrack, the Volvo telematics system, you can remotely monitor the status of your machine, including engine, fuel efficiency, important safety information and machine health. Spread service costs and keep your machine in top condition with a repair and maintenance agreement.
Volvo Compact Excavator ECR50 ECR58
HERE TO SUPPORT YOU
Volvo is here to support you with a range of services including financial services and readily available Genuine Volvo Parts – the best choice for your Volvo machine. Speak to your local dealer to find out more about the range of services they can offer to help your business succeed.
MULTI-TASKING MADE EASY
Superior stability, breakout force, tear out force and lifting capacity make the F-generation ECR58 a top performer in its class. Experience fast cycle times, even when taking on tough applications and heavy loads. High system pressure delivers impressive tractive force when climbing gradients or traveling over rough terrain.
Volvo Compact Excavator ECR58
TAKE ON MORE
Quickly switch between attachments and take on a variety of tasks in the F-generation ECR58, thanks to preset adjustments in the new 5“ display. Hydraulic flow settings are easily customizable, ensuring optimum performance for the attachment you are working with.
Volvo Compact Excavator ECR58
TILTROTATOR
Steelwrist® Tiltrotators combine flexibility and precision with a compact size and low weight. For total convenience, settings are easily adjusted from the display and the tiltrotator is controlled from the machine joysticks with three rollers. Fully supported by Volvo parts and warranty, the tiltrotator control system is delivered from Volvo factories.
Volvo Compact Excavator ECR50 ECR58
TILT QUICK COUPLER
The ultimate in coupling flexibility with a tilting angle of up to 2 x 90°. The Tilt Quick Coupler connects to dedicated auxiliary lines and enables quick and easy switching between attachments. The compact design of the quick coupler, including minimal height and length, helps to achieve an outstanding digging performance.
Volvo Compact Excavator ECR50 ECR58
HYDRAULIC THUMB
The hydraulic thumb from Volvo is designed to work with both Volvo direct fit buckets and quick coupler. It can be used to work with various materials across a range of tasks, including piling, placing, loading, lifting and carrying.
