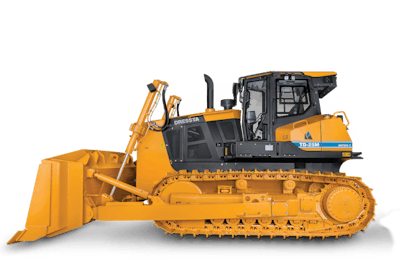

NEW TD-25M
The best all-round performer, just got better
KEY SPECS
Engine Range (246 kW - 280 kW)
Weight Range (41.2 t - 41.5 t)
Blade Capacity Range (9.6 - 21 m3)
Ground Pressure 102 kPa
Overview
When it comes to operational performance, nothing stands in the way of the New TD-25M.
In the mine, in the quarry, on the road site or in any heavy weight application, the superior pushing power and control of the New TD-25M sets this dozer apart. Climb into the cab, experience the power and youÕll know youÕve made the right choice.
Features and benefits
AN ALL-NEW OPERATOR`S CAB - A HOME FROM HOME
We built our cab around your comfort with improved visibility, a new deluxe seat with heated option, advanced climate control, new high efficiency shock absorbers to reduce noise and vibration and for safety, integrated ROPS & FOPS. But weÕve gone further to create a more productive environment too. WeÕve radically improved the operatorÕs interface, with new ergonomic joysticks for precise control, high visibility LCD in-cab display and Bluetooth, USB device connectivity.
ENHANCED VISIBILITY
When you see more you can do more. With 33% more glass surface area, a tapered engine hood presenting clear sightlines to the blade corners, a rear view camera, and additional ripper lighting, youÕve got the job covered from every angle.
THE POWER WITHIN
At the heart of this awesome dozer beats a turbocharged Cummins X15, 280 kW (375hp) engine, compliant to EPA Tier 4 final/EU Stage V emissions regulations. Also available as EPA Tier 3/EU Stage IIIA with Cummins QSX15 engine. The combination of Cummins expertise with the latest
heavy-duty diesel design delivers higher peak torque and exceptional fuel efficiency, giving you the confidence to take on the toughest jobs without breaking a sweat.
CLASS LEADING DRAWBAR POWER
With 790 kN of drawbar pull, youÕve got all the pulling power youÕll need, delivered through the perfect combination of a 3-speed power shift transmission and 2-speed steering drive.
TOTAL MOTION CONTROL
With travel speed pre-selection and automatic down shifting mode, weÕve made it even easier for you to move more material with greater efficiency.
FASTER CYCLE TIMES
With improved blade control for increased productivity, the Ripper Auto Rise function works to shorten cycle times thanks to the efficient load sensing system.
YOUR CHOICE OF WEAPON
Whatever you need, whenever you need it, we offer you an awesome arsenal of blades including a Semi-U blade, Full-U blade, Coal blade and Angle blade. Our blades have been designed to match the needs of two polar extremes - fine, light dozing and aggressive heavy material movement. The result is arguably the most versatile and high-performance blade range in the industry.
For blades, size equals productivity. Our standard Semi-U blade, for example, is one of the largest blades in its class with a 9.6m_ capacity. Our standard Semi-U blade may be big, but it combines the penetration ability of a straight blade with its increased capacity making it the ideal choice for heavy duty applications like mining and road construction. When speed and efficiency are everything, our blades are a cut above the rest. When it comes to rippers, youÕve got a choice of single-shank or multi-shank.
BLADE SELECTION SEMI-U FULL-U ANGLE COAL
UNDERCARRIAGE STD STD STD STD
BLADE CAPACITY 9.6 m3 11.5 m3 5.7 m3 21 m3
SAE J1265
RIP IT DEEP
For breaking rock, concrete, hard packed or frozen soil you need the tough, concentrated and penetrating force that our single-shank rippers deliver. Our standard shank penetrates to 1,250mm but for a deeper cut, choose the deep shank option. With 1,700mm penetration and fully utilising the 790 kN of drawbar pull force, our rippers have the power to rip through the toughest jobs with speed and efficiency. For ease of operation, a hydraulically controlled ripper shank pin puller allows you to adjust ripper penetration depth from the cab. Both the single-shank and multi-shank rippers are equipped with four large cylinders, two for pitching and two for raising and lowering. The angle of attack for the ripper shank can be changed with ease to match the ripping conditions. Our adjustable parallelogram multi-shank ripper also offers excellent 760mm penetration. It can be angled on-the-go to help boost your productivity. Choose, set, and let rip!
CONNECTED SUPER HIGHWAY
The TD-25M is grade control ready with a choice of connected grade control solutions for road and highway applications. These smart solutions boost productivity by increasing accuracy, reducing passes and saving time and fuel. Full grade control system gives you a ready to use, factory fitted system which is complete and ready to go. Digital Ready, the TD-25M has all of the factory fitted preparation work complete ready for future installation as required.
THE LOWEST TOTAL COST OF OWNERSHIP
WeÕve gone further to protect your investment and deliver the lowest cost of ownership. Easy, safe, fast access to maintenance points reduce down time. Lifetime lubricated rollers, heavy duty chains and idlers for extended track life all combine to reduce maintenance costs. Our intelligent, modular component layout makes servicing and maintenance even easier.
