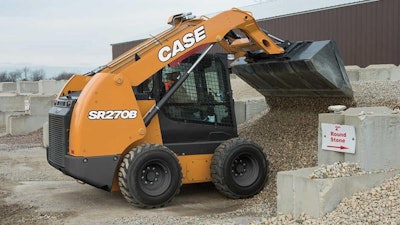

SR270B

SPECIFICATIONS GENERAL DIMENSIONSHeight to bucket hinge pin mm3178Height to top of ROPS mm2002Length without attachment mm3016Length with bucket * mm3646Overall width mm1768Wheelbase mm1322Ground clearance mm203Dump height * mm2562Dump angle Â¡38Dump reach @ max height mm574Angle of departure Â¡24Rollback angle (bucket on ground) Â¡31 SPECIFICATIONSFrame SizeLargeEmissions LevelTier 4F Stage IVPerformance SpecsRated Operating Capacity 50% kg1225ROC with counterweights 50% kg1315Tipping load kg2450Lift cylinder breakout force** kN27.1Bucket cylinder breakout force** kN38.6 ENGINEEngine make - ModelFPT F5H (Turbo)Displacement l3.4Horsepower hp/rpm90 @ 2500Peak torque Nm/rpm383 @ 1400 TRAVEL SPEEDLow range km/h12.4High range (optional) km/h18.5 HYDRAULIC SYSTEMPump flow LPM92Optional high flow LPM143Relief pressure bar210Optional enhanced high flow bar277 WEIGHTSOperating weight kg3681Shipping weight kg3526 SERVICE CAPACITYFuel tank l96.5

CASE Construction Equipment - CNH

SPECIFICATIONS

GENERAL DIMENSIONSHeight to bucket hinge pin mm3178Height to top of ROPS mm2002Length without attachment mm3016Length with bucket * mm3646Overall width mm1768Wheelbase mm1322Ground clearance mm203Dump height * mm2562Dump angle Â¡38Dump reach @ max height mm574Angle of departure Â¡24Rollback angle (bucket on ground) Â¡31

SPECIFICATIONSFrame SizeLargeEmissions LevelTier 4F Stage IVPerformance SpecsRated Operating Capacity 50% kg1225ROC with counterweights 50% kg1315Tipping load kg2450Lift cylinder breakout force** kN27.1Bucket cylinder breakout force** kN38.6

ENGINEEngine make - ModelFPT F5H (Turbo)Displacement l3.4Horsepower hp/rpm90 @ 2500Peak torque Nm/rpm383 @ 1400

TRAVEL SPEEDLow range km/h12.4High range (optional) km/h18.5

HYDRAULIC SYSTEMPump flow LPM92Optional high flow LPM143Relief pressure bar210Optional enhanced high flow bar277

WEIGHTSOperating weight kg3681Shipping weight kg3526

SERVICE CAPACITYFuel tank l96.5
