SV340B

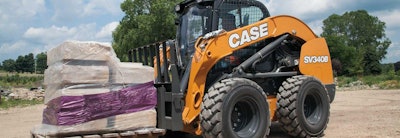

SV340B SKID STEER LOADERThe largest and most powerful skid steer in the CASE product line, the SV340B is your all-around solution for handling heavy palletized materials, fast and efficient earthmoving, and running powerful attachments such as stump grinders and cold planers. The 3,400-pound rated operating capacity at 90 horsepower matched with powerful auxiliary hydraulics and an extremely comfortable and productive operator platform make the SV340B a powerful addition to any fleet.

Visibility and ComfortCASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE vertical-lift skid steers also feature a low-profile H-link that improves rear visibility compared to the competition. Each model features one of the industry’s widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Optimal ControlCASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.

Productivity and PerformanceBucket breakout force of 9,531 pounds and a rated operating capacity of 3,400 pounds (up to 3,650 pounds with optional counterweights) make the SV340B a monster in the field. The machine also offers optional high-flow (38.7 gpm at 3,450 psi) and enhanced high-flow (35 gpm at 4,000 psi) auxiliary hydraulics for excellent power and attachment versatility.

Ease of OwnershipAll critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. The SV340B features a selective catalytic reduction (SCR) emissions solution that requires no regular maintenance or filter replacement (no diesel particulate filter) — simply fill the diesel exhaust fluid (DEF) tank as needed!

HPCR, EXTERNAL CEGR WITH DOC & SCRWhy this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. Then the Diesel Oxidation Catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.What this means to you: SCR provides a significant reduction in fuel use and has no DPF to replace, resulting in a lower total operating cost for the life of the machine. Keeping it running is simple - just refill DEF as needed.Powered by an FPT engine

Base & Extended Warranty Coverage1-Year/Unlimited-Hour Full-Coverage Base Warranty2-Year/2,000-Hour Full Coverage Base Limited Warranty2-Year/2,000-Hour Extended Limited Engine WarrantyEngine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased ProtectionPurchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.Please see your CASE for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
