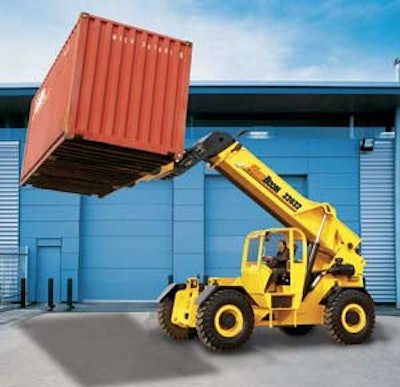

CareLift ZB32032 Telescopic Reach Forklift

  • Capacity of 32,000 lbs.
  • Lift height of 32 ft.
  • Includes a 173-hp Cummins QSB 5.9 engine, Dana T32,000 powershift transmission and AxelTech axles
  • Features three modes of steering as well as frame leveling
  • Numerous tool carrier attachments available

Genie GR-20 Runabout

  • Stiffer mast structure with improved mast flaps
  • New mechanical pothole system allows for 2-in. ground clearance
  • Reduction of platform step-in height to 15 in.
  • Zero inside turning radius
  • Proportional drive capabilities
  • New compact design (53" x 31.5"), hydraulic drive and mechanical steering systems provide better mobility in and out of tight areas and provide for easy passage through doorways and elevators
  • Total of nine available platform options

Haulotte HA 100 JRT

  • 105-ft. maximum working height with a platform height of 98 ft. 5 in.
  • 69-ft. 11-in. maximum horizontal outreach
  • 37-ft. 3-in. up and over clearance
  • 551-lb. platform capacity
  • Standard four-wheel drive and steer
  • 15-in. ground clearance
  • 45-percent gradeability
  • Hydraulic differential lock
  • Extendable axles

Wap Attix 19 Series from Alto

  • Series of wet and dry vacuums
  • 19-gal. canister, steel frame, stainless-steel canister, two-stage turbines and bypass motors as well as an exclusive tilting, removable container
  • Tilt feature allows the operator to easily empty the canister without having to turn over the entire vacuum
  • Removable container gives the operator one more emptying option
  • Vacuum operates with an air flow of 140 cfm and a water lift of 105 inches, while producing only 57 dB(A)

Kaeser M14 Rotary Screw Compressor

  • Portable rotary screw compressor
  • Sigma Profile airend
  • 18-hp industrial gasoline engine
  • Produces 50 scfm at 100 psig
  • Lightweight wheel-mounted package with hinged handle bar
  • Vibration isolator pads absorb shock and ensures quiet operation

Subaru Robin Silent Series Generators

  • Models include R1700i at 1,650 watts, RG3200iS at 3,200 watts and RG4300iS at 4,300 watts
  • Engines run at slower speed for low power use and automatically increases as more electrical power is required
  • Advanced reverse cooling design allows units to be fully enclosed in a sound-absorbing poly-resin enclosure
  • Subaru Robin gasoline engines

Shindaiwa DGK45C Ultra Quiet Generator

  • Has been upgraded to ultra-quiet status
  • Noise levels of 53 dB(A) at idle and 56 dB(A) at full load
  • Low fuel consumption
  • Compact size
  • Reduced weight

Garrett Metal Detectors Ace 250 and 150

  • For locating lost, hidden or abandoned treasure and other metal objects
  • Feature exclusive Graphic Target Analyzer (GTA) technology, sensitivity adjustments, continuous coin depth indicator and target ID legend
  • The Ace 250 also offers accept/reject trash elimination, electronic pinpoint and continuous battery life indicator
  • 6.5" x 9" PROformance submersible searchcoil with two optional coils including the 4.5-in. Sniper searchcoil and
    9" x 12" PROformance searchcoil

American Compaction Diamond Compaction Wheels

  • For use on backhoes, excavators, skid steers and compact excavators
  • Over 30 models with sizes from 4 to 72 in.
  • Each wheel equipped with cutting edge and choice of mounting plates
  • "Triple" Seal Bearing with rock protectors

Case 400 Series Skid Steers

  • Five radial-lift and three vertical-lift models with maximum rated loads from 1,500 to 3,000 lbs.
  • 49- to 82-net-hp Tier II-certified engines
  • Extra-heavy-duty design
  • New cooling system provides balanced cooling to the engine and hydraulics
  • Low-effort servo-hydrostatic controls
  • Factory-ready cab with optional air conditioning available for Models 430 and above
  • Over 75 attachments available

Bandit 3400 Stump Grinder

  • For removing stumps in land- and lot-clearing projects, under power lines and beneath right-of-ways
  • Equipped with 140 hp and a unique hydrostatic cutter wheel drive with hydraulic, planetary motor built into the cutter head, which eliminates the need for a belt, jackshaft or transfer case type drive
  • 305 Cat rubber-tracked undercarriage allows machine to go almost anywhere and work in soft or uneven ground conditions
  • Radio remote controls all functions from any position

Bobcat Boring Attachment

  • Allows Bobcat mini track loaders and 463 skid-steer loaders to install utilities under driveways, sidewalks and other obstructions
  • Installs electrical, telephone, cable and flexible water pipe up to 2 in. in diameter with minimal disturbance
  • Low-speed, high-torque hydraulic motor drives a screw-type boring bit through the ground as machine is driven forward
  • Backreams with reaming bit
  • Various-sized boring tools available including carbide bits

E-Z Trench Bedscaper BE310-A

  • Landscaping trencher
  • 6.5-hp Honda GX engine with a centrifugal clutch
  • Handle-mounted controls for the throttle
  • Adjustable cutting depth and handle height

Allmand TLB-6235

  • Full-time mechanical four-wheel-drive system and a servo-controlled hydrostatic transmission
  • 35-hp Isuzu liquid-cooled diesel engine
  • ESL (Extended Service Life) backhoe with up to a 9-ft. 10-in. digging depth and a 6,000-lb. bucket digging force
  • 2/3-cu.-yd. loader bucket
  • Load-sensing hydraulic steering system

Kubota E-Series Engine

  • E-TVCS (three vortex combustion system) technology
  • Offers reduced soot, unburned HC and CO emissions
  • Produces less NOx than traditional direct-injection systems

Gehl CT-Series Telescopic Handlers

  • CT5-16, CT5-16 Turbo, CT6-18 Low Profile, CT6-18 Turbo and CT7-23 Turbo feature maximum capacities from 5,000 to 7,000 lbs.
  • Maximum lift heights from 16 ft. 2 in. to 22 ft. 7 in.
  • Rated capacities from 5,000 to 6,000 lbs.
  • 58- to 101-hp turbocharged and naturally aspirated Tier II diesel engines
  • Pilot-controlled hydraulic system
  • Hydraulic quick-attach system and standard auxiliary hydraulics

Ingersoll Rand Power Buggy

  • 16.5-cu.-ft. power buggy can be used for concrete spreading, demolition debris removal, spot pouring and more
  • Available with either a steel or poly-type tank
  • 6 in. of bucket clearance in fully dumped position
  • 13-hp Honda engine
  • Electric or recoil start
  • Optional foam-filled tires to increase stability

New Holland C185 Compact Track Loader

  • 2,400-lb. rated operating capacity
  • Super Boom vertical lift linkage
  • Two-speed transmission delivers travel speeds up to 8 mph
  • Optional hydraulic mount plate allows operator to securely attach or remove buckets and attachments without leaving the seat
  • Enhanced visibility with no rear frame towers to block operator's view

Morbark Stump Grinders

  • Top speed of 3.2 mph for getting to the stump faster
  • Unique cutter wheel and tooth design enables them to grind stumps more quickly
  • Patent-pending boom design creates a 52-in. cutting arc
  • Hexagon-shaped cutter wheel
  • Six multi-tipped cutting tools fastened with one bolt each provide the grinding performance of 24 teeth
  • Up to 8 cu. ft. of chip retention space allows for more continuous grinding and less repositioning

Niftylift Traction Drive System

  • Available on its range of trailer-mounted boom lift platforms
  • Allows operator to unhitch, maneuver and position even a large trailer mount quickly and safely
  • Controlled via joystick positioned next to the towing eye
  • Hydraulic motors transmit drive directly to the wheels

Kubota U-Series ZTS Excavators

  • 1.5-ton U15, 2.5-ton U25 and 4.5-ton U45 zero tailswing excavators are designed for work in tight spaces
  • No rear overhang beyond the width of the tracks
  • U15 has a variable track width and comes with a quick-coupler bucket set with 3,417 lbs. of breakout force
  • U25 has 5,765 lbs. of breakout force and an overall width of 4 ft. 11 in.
  • U45 delivers 9,685 lbs. of breakout force and features an angle blade with floating positioning, as well as an auto idle system

Towmaster Contrail C-14 Drop-Deck Trailer

  • 13,600-lb. capacity
  • Oak wood deck
  • 7,000-lb. Dexter Torflex axles
  • Spring-assist ramps
  • Auto-Latch ramp hold-ups

Partner K 750 Power Cutter

  • Dual Charge engine technology delivers 5 hp while producing 70 percent fewer emissions and providing greater fuel economy
  • Vibration dampening system offers 50 percent lower vibrations and smoother cutting
  • 25 percent lower noise level due to a larger muffler
  • Additional features include Active Air Filtration, SmartCarb carburetor, automatic decompression valve and DuraStarter dust-sealed starter

Stone Champion Mixers

  • 12 different Champion concrete mixers in sizes from 2 to 12 cu. ft.
  • Available in standard side and end-dump versions
  • Engine options include Briggs & Stratton, Honda and Robin
  • 9-cu.-ft. size available with a polyethylene drum option
  • Lifetime warranty on drum bearings and seals and a two-year drum warranty

Terex HR1.5, HR1.6 and HR2.0 Compact Excavators

  • Operating weights from 3,395 to 4,300 lbs.
  • Breakout forces from 3,420 to 3,535 lbs.
  • 18-hp, three-cylinder Mitsubishi diesel engine
  • Improved dampening for a quiet ride
  • Right-hand side, ABS-molded console contains throttle, starter switch and electric toggle switches

Target G2 Tile Saws from Electrolux

  • Tilematic G2 cuts 16 in. diagonally, while the Super Tilematic G2 cuts 22 in. diagonally
  • Tilematic G2 rip cuts a 24-in. tile; Super Tilematic G2 rip cuts a 31-in. tile
  • 1 1/2-hp Baldor continuous-duty motor is totally enclosed and fan cooled

Lay-Mor Model 2A Walk-Behind Sweeper

  • 40-in. directional broom
  • 5 1/2-hp Honda or 5-hp Briggs & Stratton
  • Dual drive wheel
  • Adjustable broom angle at handlebar
  • Sprinkler system available

Gensco Robend Rebar Bender

  • Capacity to #5 (5/8-in.) rebar
  • 115-volt single-phase
  • Automatic angle setting with auto stop
  • Maximum bending to 180 degrees
  • Supplied with three bending formers and available with formers for pipe
  • Weighs approximately 28 lbs.

Ground Heaters Arctic Bear HD

  • Indirect-fired heater designed to deliver clean, dry heat while tolerating the most extreme cold-weather conditions
  • Can withstand ambient temperatures down to -60 degrees F and winds up to 70 mph
  • 100-percent stainless-steel firebox and heat exchanger
  • All hoses and wiring are arctic grade
  • Powered by a CSA-certified, 10KVA, 240-volt AC, three-phase generator which is driven by a Kubota 1,800-rpm diesel engine
  • Offers heat output of 500,000 to 850,000 BTU/hr

Thieman Toplifter Series Liftgates

  • 42- or 44-in. platform and is rated with a 1,500-lb. capacity
  • Standard Nitrotec pins and Polylube bushings at all pivot points for reduced maintenance
  • Standard 5,000-lb. tow rated bumper and dual cylinders
  • Torsion Assist on all 42-in. deep steel platforms
  • Options include: variety of platform materials, light kit, in-cab shut-off switch and remote pendant controls

McLaren Protrac

  • Over-the-tire skid-steer tracks provide maximum traction and flotation in mud, sand and snow
  • Heat-treated, hammer-forged pins and links
  • Crafted with specially formulated steel, not cast iron
  • ProTrac Diamond suitable for mud, clay, loose rock and sand
  • ProTrac Magnum offers more pushing and pulling power in deep mud or for demolition and land clearing
  • ProTrac Rubber allows for safe use on asphalt or grass

Astec RT160

  • 24-hp Honda gasoline engine
  • Trenches to 48-in. deep and from 4 to 8 in. wide
  • Two independent hydraulic pumps control the ground drive and trencher drive
  • Hydraulic trencher drive system directly connected to the trencher head shaft
  • Hydrostatic ground drive provides inching precision and infinitely variable speeds for working in different applications and conditions
  • Electric start and single-joystick operation, as well as Astec's unique "automatic parking brake" operator presence system

Huskie Hydraulic Hammer Series II

  • HH150-2 through HH1000-2 Series II breakers feature impact energies from 200 to 1,200 ft.-lbs.
  • Redesigned operating piston, main valve and internal porting for increased power
  • Slight increase in low-pressure nitrogen gas charge
  • Wider input flow range for use on low- and high-output carriers
  • Modular design with fewer than 40 total parts
  • Multi-fit bracket for mounting on various prime movers

Vermeer RT350

  • 37-hp ride-on trencher
  • Backfill capabilities
  • Trenching depth to 48 in.
  • Patented creep override for better machine control

Trench Shoring Services Product Line

  • Steel trench boxes from 2 to 12 ft.
  • One-, three- and four-sided shoring, as well as cofferdams and manhole boxes
  • Light-duty aluminum shoring and medium-duty aluminum trench boxes
  • Manhole casings and frames
  • End closure and doghouse panels, H-beams, bore pits, bedding and rock boxes and other products available

Construction Attachments Multipurpose Buckets

  • Enable a tractor, skid steer or backhoe-loader to scrape, bottom dump, clamp, dig, doze, clam load, backfill and load material
  • 54- to 72-in. widths with 6.7- to 9.1-cu.-ft. heaped capacities
  • 19-in. maximum clam opening
  • Pre-drilled front cutting edge to accept bolt-on reversible cutting edge or teeth
  • Rear hitch designed to match carrier hitch dimensions
  • Optional One-Touch hydraulic kit to actuate clam circuit on tractors without auxiliary hydraulics

Arrowhead Rockdrill S Breaker Range

  • Reduced noise and vibration via vibration-silencing technology
  • Compressed urethane mounting section eliminates use of cross bolts for reduced wear and maintenance
  • Ratio of power to speed provides sufficient power for large jobs

BLS Poly Bolt-On Track Pads

  • Allows easier installation and removal of track pads from grousers
  • Enables reuse of predrilled steel triple grouser by replacing only the polyurethane bolt-on track pad
  • Available for asphalt pavers from Ingersoll Rand, LeeBoy and Mauldin
  • Available for milling machines from Bitelli, Caterpillar, CMI, Dynapac, Ingersoll Rand, Marini, Roadtec and Wirtgen
  • Available for concrete slipform pavers from Gomaco, Miller Formless and Power Curbers
