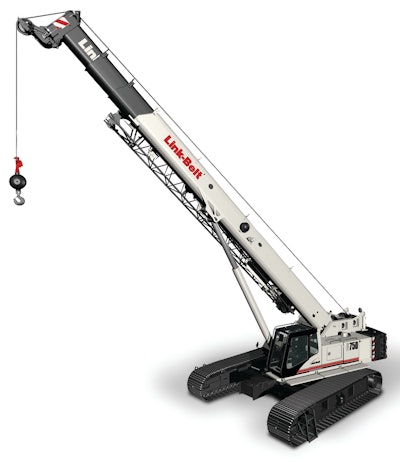

The 75-ton TCC-750 has a completely sealed lower and hydraulically retractable side frames for easy transport and onsite flexibility. Its four-section, full-power greaseless boom is 38 to 115 ft. with a maximum tip height of 121 ft. An optional 35- to 58-ft., two-piece, on-board lattice fly offers offsets of 2°, 15°, 30° and 45°. Maximum tip height with jib is 179 ft. Available Pengo hydraulic-powered earth augers include the RT-15 with a 17.8-cu.-in. motor and 15,478 ft.-lbs. of torque, and the RT-20 with a 11.9-cu.-in. motor and 22,662 ft.-lbs. of torque. A work platform is also available.
