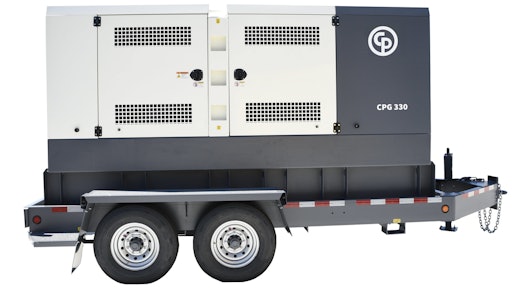

CPG 330 Generator

The CPG 330 offers a higher efficiency engine.

Cpg 330 2
Cp Chicago Pneumatic Black 10893844

 These machines were built with overall product quality, ease of serviceability, user friendliness and economical operation in mind.

  • These versatile units can be utilized in several applications including construction, the oil field and special events.
  • The CPG models are now equipped with a John Deere 9-liter, 6-cylinder Tier 4 Final diesel engine
  • With a rated prime power of 330 kVA/264 kW, the CPG 330 runs at 390 hp
  • Provides startup power with 300% over-current starting capabilities coupled to the engine’s capacity to stand a 100% load step.
  • The CPG units are corrosion resistant
  • Offer a unique foam and layering system inside the doors
  • Keeps water out and improves sound attenuation at 73 dB(A)
  • Environmentally sensitive with 110% fluid containment
  • The generators allow flexibility for the operator by matching the machine to the correct applications
  • The standard dual axle trailer or an optional skid mounted unit with forklift pockets
  • An internal 385-gallon fuel tank runs for 26 hours at 75 % load
  • The fuel tank provides safe diesel storage
  • Eliminating tank corrosion contaminants from being introduced to the fuel system
  • With integrated fuel water separator and filter
  • Designed to help maintain cleanliness
  • Provide diesel supply to the engine for reliable trouble-free operation
  • Large access doors and panels
  • Heavy duty oil, air and fuel filters extend the maintenance interval to 500 hours
  • Units were manufactured with an emergency stop
  • A remote signal start and stop allows connection as a critical backup unit via a two-wire dry contact connection in the distribution panel
  • A DeepSea 7310 controller is fully diagnostic with its three-inch display
  • It is intuitive and easy to operate with all functions conveniently at the operator’s fingertips
  • An optional paralleling controller includes a unique touch screen display and can link up to 32 generators of any size, working in Power Management Mode


For more information on CPG generators and other Power Technique equipment, visit www.cp.com.
