RDS-15 Crushing Plant

Irock Rds 15 Crushing Plant 10910033

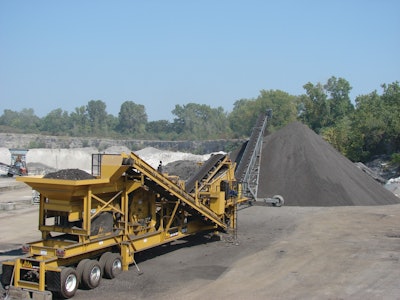

IROCK's RDS-15 Horizontal Impact Crushing Plant, a rapid deployment system, provides exceptional portability and rapid set-up time.

  • A versatile, compact crushing and screening system
  • Ideal for processing smaller materials such as reclaimed asphalt pavement (RAP)
  • Powered by a 350-hp Caterpillar C-9 ACERT Tier 3 engine
  • Process up to 350 TPH
  • Self-contained, with on-board power supplying full plant operation
  • Features three outlets for powering optional auxiliary conveyors to sort and stack processed materials
  • Electronic hydraulic clutch reduces power loss and increases fuel efficiency
  • Closed circuit design gives operators the option to recirculate material requiring further sizing
  • Features a 5- by 14-ft., double-deck huck-bolted screen frame
  • 40-in. by 14-ft. vibrating grizzly feeder
  • The two-step, tapered grizzly removes fines and only allows materials that need to be sized into the crusher
  • Unit is compact and light enough to be transported without the removal of the hopper
