PS 1000 X-Scan Radar Detection System

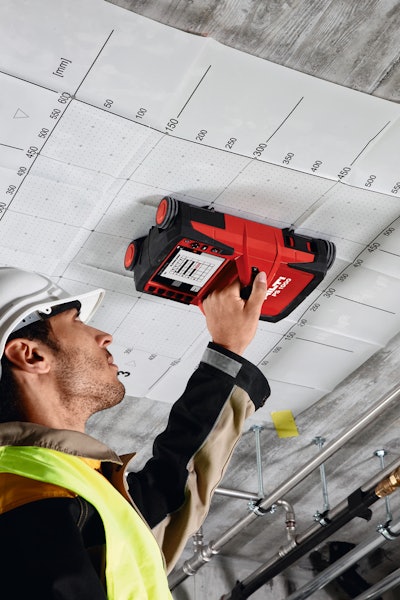

The system is designed to produce large-area images of what's inside concrete structures

Hiltips1000xscanappl 10632572
Hiltilogo2011

Hilti’s PS 1000 X-Scan can scan wide areas of concrete and detect objects in multiple layers of concrete for the detection of hidden rebar, pre and post-tensioned tendons, metal and plastic pipes, wood, electric, and glass fiber cables.

Key Features

  • Scans up to a depth of 18 in. in dry concrete.Hiltips1000xscanprod 10632574

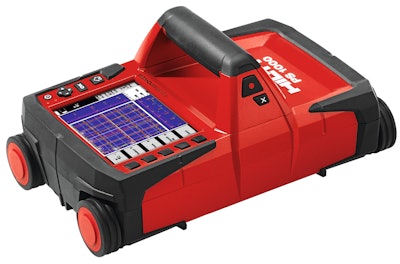

  • Equipped with three radar antennas and an EM sensor to give real-time 2D and 3D color images on its X-Scan display of any embedded object, and clear indication on electrical conduit in high resolution. This means you can markup embedded objects, which you’ve detected, on the spot.
  • Includes drill hole indicators with true diameter in top and cross-section views.
  • Scan data can be exported directly into a laptop or computer for more detailed analysis, to create and print reports and archive data.

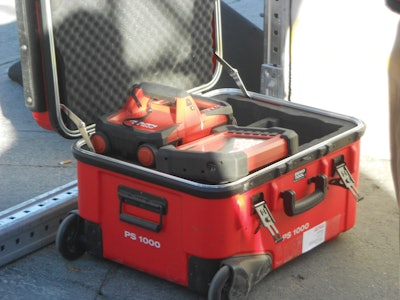

  • System includes a cordless scanner, tablet, and PC software.
  • It has 2 scanning modes. Use Imagescan to scan large areas of concrete in a grid pattern to get an easy to read plan view image. Use Quickscan for a quick scan, making it easy to mark up a jobsite on the spot.

Hilti Wallscanner2 10632576Users can export scan results to Hilti PROFIS Detection software for a more detailed analysis of your scan.

  • Full data processing into 3D models, including 2D and 3D plan views or cross-sectional images.
  • Combine data from our Hilti PS 250 Ferroscan Detection System with X-Scan data for depth calibration and material classification.
  • Grid coordinate entry, distance markers, and drill hole markers including export function.
  • Export to Hilti PROFIS Anchors software and 3D model software, such as AutoCAD, Trimble, SketchUp, Structures, and Revit.
  • Create a wide range of reports and documentation.
