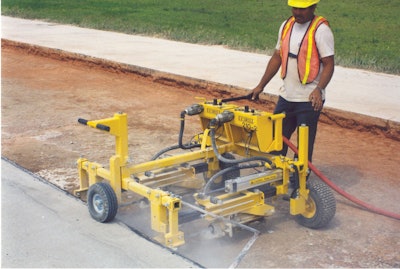

Model 210B-2 On-Grade Drill

E-Z Drill's pneumatic Model 210B-2 On-Grade Drill, part of the 210B Series of on-grade concrete drills, has been designed for straight-line drilling on a level subgrade. The compact frame allows the user to operate within a 4-ft. area and drill withing 6 in. of a corner.

• Drills to standard 18-in. depth
• Requires 200 cfm
• Regulators let operator set optimum drilling speed for each individual drill
• Quick-release bit guides correspond with any style of bit
• Vertical height adjustment levels allow unit to drill on center
• Roller bearing feed system eliminates friction while drilling
• Carriage locks secure drill and bit in place when air supply is off or disconnected
• Auto-lock couplers automatically secure air supply hose onto drill coupling
• Individual oilers lubricate each drill from separate reservoirs
• Balanced lifting point helps prevent load shift
• Option for two-gang system
• Optional vertical conversion kit available
