HDC100 for SDS-plus Concrete Drilling

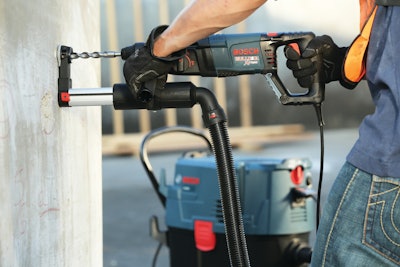

The Bosch HDC100 is engineered to collect dust before it enters the air through a dust cap that surrounds the tip of the bit. The metal telescoping rail retracts into the housing to accommodate the drilling application and improve jobsite durability.

• Depth adjustment allows the user to control the drilling depth up to 4-3/4 inches.
• Maximum bit diameter: SDS-Plus Bit – 1/8” – 5/8”; Core Bit – 3-1/8”
• Maximum bit length: 6” – 8”
• Vacuum Connection: 1-3/8” vacuum hose nozzle
• Adapters available to fit to 1-1/4” and 2” vacuum hose nozzles
• Fits most Bosch SDS-plus hammers with 50 mm hammer tube collar (*Excludes 11250VSR and RH432VCQ)
• Available in May 2014
