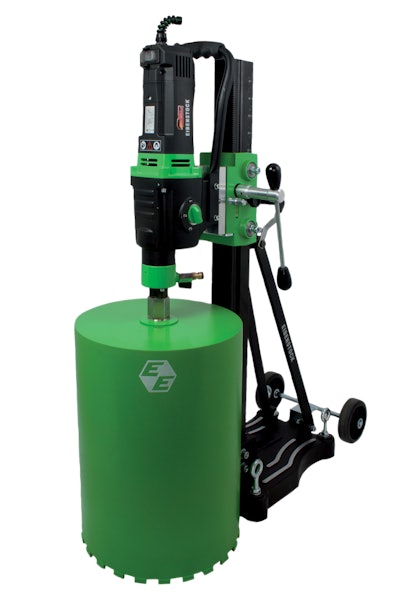

CS Unitec’s EBM 352/3 PSA Rig-Mounted Core Drill

CS Unitec’s EBM 352/3 PSA rig-mounted core drill is ideal for drilling up to 14” diameter holes in concrete, reinforced concrete, asphalt and natural stone. At 77 lbs., the EBM 352/3 PSA is the lightest drill in its class, featuring a powerful 20 amp high-torque motor and a rugged three-speed gearbox with drilling speeds of 230, 500 and 1030 RPM. An internal oil pump lubricates the gearbox and shaft for longer life.

• The EBM 352/3 PSA features soft start and overload protection. A mechanical slip clutch protects it in case of jamming
• The 39” tall anchor stand features a Quick Lock Motor Mount, positive locking knob and two 5” wheels for easy portability
• It also includes a screw jack for bracing
• The hand crank has an adjustable angle of up to 45-degrees and can be mounted on either side of the drill stand
• This portable drill rig is made for heavy-duty concrete core drilling
• The motor is mounted on a special slide rack and can easily be removed from the stand in seconds, making it easy to transport the rig in two pieces to the job site
• The EBM 352/3 PSA core drill motor can be purchased alone (Model EBM 352/3 P) or with an anchor vacuum stand and vacuum pump (Model EBM 352/3 PSV)
