AlertCast & AlertTile Tactile Warning Products

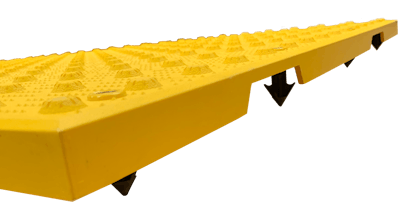

Detectable Warning Systems Paver Corner

AlertCast and AlertTile detectable warning products are engineered for visually impaired or handicapped pedestrians, offering advanced rigid composite material solutions with "tactile cues" for either cast-in-place or surface applied construction and safety applications.

AlertCast is a premium glass-reinforced thermoset, cast-in-place, rigid composite engineered for superior impact resistance, slip resistance, wear resistance and long-term durability. Its exclusive lightweight design incorporates a panel of superior slip-resistant truncated domes designed to comply with ADA standards. Should the need arise, the tiles are also replaceable.

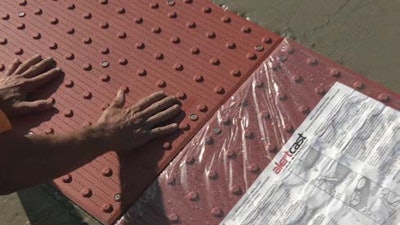

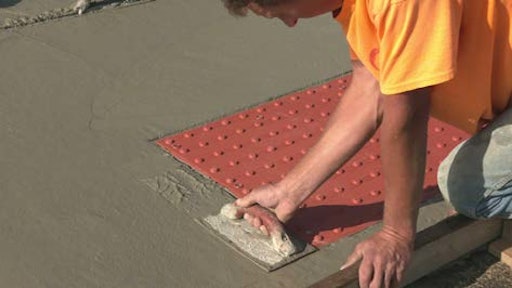

Notably, it features the patented PENETRATOR anchoring system–a simple place-and-press wet concrete installation system with minimal aggregate displacement and maximum holding capabilities.Pr Dws Mb At Ac 2

AlertCast, approved by DOTs across the country, is also Caltrans approved–considered by the construction industry to be a bench-mark in product standards for quality and performance. The high standards of the Caltrans requirements meet or exceed all other state and federal Department of Transportation testing requirements.

AlertTile is a glass-reinforced thermoset composite engineered for superior impact resistance, slip resistance, wear resistance, and long-term durability for retrofit applications. The exclusive design of AlertTile incorporates a thin, slightly flexible profile with a perimeter beveled edge to provide a safe pedestrian transition.

The surface applied rigid composite (30,000 psi compressive strength) features truncated domes designed to comply with ADA standards. AlertTile is flexible enough to conform to ramp irregularities and  utilizes its own unique anchoring system.

Fast-and-easy installation is achieved with the included and proven anchoring system, featuring a premium adhesive and HILTI HUD anchors with stainless steel screws. Simply apply the adhesive to scored areas on the back, place in desired location, and install the anchors.

A premium UV treatment ensures long-term color retention of both products. Available colors (integral throughout) include: yellow, colonial red, brick red, safety red, black, gray and ocean blue.

  • Dome Spacing: 2.40 in.
  • Center-to-Center Slip Resistance: Dry = 1.03 / Wet = .83
  • Compressive Strength: 30,000 psi
  • Multiple Sizes From: 2 ft. x 3 ft. to 3 ft. x 5 ft.
