Worksite Pro Scrap and Rock Grapple Buckets

John Deere has added six new grapple buckets to its Worksite Pro attachment lineup: GS66B, GS72B, GS78B, GS84B, GR72B and GR84B

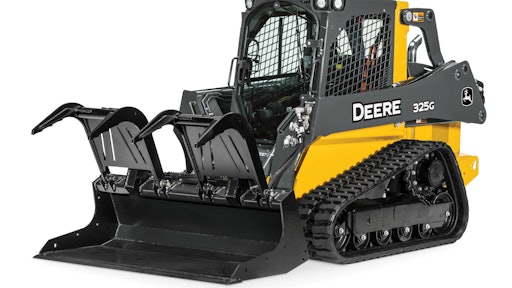

Scrap grapple bucket
Scrap grapple bucket
Johndeere 10073478

John Deere has added six new grapple buckets to its Worksite Pro attachment lineup: GS66B, GS72B, GS78B and GS84B scrap grapple buckets and the GR72B and GR84B rock grapple buckets. The scrap buckets are designed for scrap handling and jobsite cleanup applications. The rock buckets are designed for land clearing, jobsite cleanup and brush removal as well as grading after debris removal.

  • Two independent-action grapples allow for different sized objects to be picked up
  • 24.4-in.-wide grapple arm
  • Grapple arms have integrated mechanical stop
  • Grapple stance width: 60.6 in. (GS66, GS72, GR72); 65.3 in. (GS78, GS84, GR84)
  • Rock grapple models have 3-in. tine spacing
  • Scrap grapple models feature predrilled cutting edges for optional bolt-on, replaceable edges
  • Rock grapple models feature weld-in serrated cutting edge
  • Greaseable and hardened 1.25-in. pins
  • 90-degree hydraulic quick couplers
  • Standard cylinder guards
  • Cylinder size increased to a 2.5-in. bore and a 1.4-in. rod
  • Compatible with select John Deere G-Series skid steers and compact track loaders, L-Series compact wheel loaders and other competitive models
