JCB 100C-1 Compact Excavator

Company's first-ever 10-metric ton compact excavator is targeted to North American customers needing more performance in a smaller machine

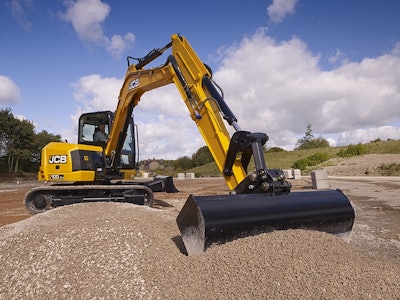

JCB 100C Grading 2 Screen 573e1112af165
Jcb Logo 10825275

Developed to answer a growing need for powerful compact excavators, JCB’s new 10-metric ton conventional tailswing compact excavator, the 100C-1, features an H-design undercarriage, steel body panels, a spacious operator environment and a 74-hp Tier 4 Final engine. The 100C-1 has a maximum dig depth of 15’, a dump height of 18’6” and a reach at ground level of 24’4”. A patented, reduced-loss hydraulic system eliminates parasitic losses and puts less demand on the engine, reducing fuel consumption.

  • “ECO” digging mode offers maximum efficiency, while “HEAVY” mode provides increased power, make it possible to tailor the machine’s performance to the application
  • Swing bracket design with slewing boom suited for confined site access
  • 30º tilting cab for ease of service access
  • 100% steel bodywork for greater durability
  • Sturdy kingpost design with widely spaced bearings to prevent wear
  • Graphite-based pin and bush design delivers 500-hour greasing intervals
  • Available with a twin-locking, factory-fitted quick-hitch system incorporating a flashing red LED warning light on the boom
  • Optional factory installed roto/tilt function installed ready for use with a number of rotating and tilting bucket mount systems
  • Completely redesigned dozer blade and arms with four-way tilt adjustable dozer blade available

Video: Unique Features of the 10-ton JCB 100C-1 Midi-excavator
