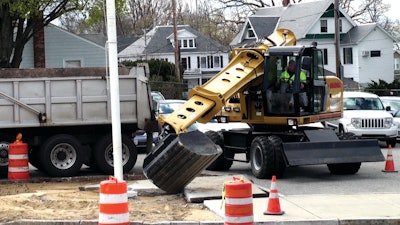

The 43,580-lb. XL 4300 III excavator is designed to work at the front, rear or either side without the need to use the optional outriggers.

  • Telescoping, tilting (220° continuous) boom provides a maximum digging depth of 21 ft. 3 in. and a 30-ft. 4-in. reach at ground line
  • 173-hp Detroit OM 904 diesel engine
  • Short tailswing allows work on highway jobs without unnecessary traffic disruption
  • Smooth telescoping boom movement suited for placing jersey barriers with less barrier swing
  • Standard air conditioning, removable front window, large adjustable seating module and a switch to select Gradall, SAE or Deere joystick patterns
  • Four-wheel-drive undercarriage with rubber tires
  • Can be switched between standard and creeper travel mode while moving
  • Axles equipped with internal wet disc-type service and parking brakes
