Gradall Series IV Excavators

XL 4100 IV, XL 3100 IV and XL 5100 IV models with Mercedes power and six-speed AutoDrive Allison transmissions raise top speed to 60 mph

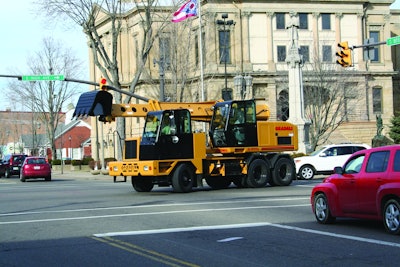

Gradall Series Iv Highway Spee 10240030
Gradallindustriesinc 10074870

The XL 4100 IV, XL 3100 IV and XL 5100 IV models feature Mercedes Tier 4 emissions-compliant engines ranging from 218 to 265 hp. Top highway speed has been increased from 55 to 60 mph, the Series IV machines accelerate faster than Series III, and operate faster and more powerfully in remote mode from the excavator cab.

  • Operating weights from 40,930 to 58,397 lbs.
  • 27-ft. 5-in. to 33-ft. 9-in. maximum boom reach at ground line
  • 17,900 to 24,900 lbs. of rated bucket breakout force
  • AutoDrive six-speed automatic Allison transmission
  • Detroit Diesel Mercedes OM926 six-cylinder diesel
  • Wheeled undercarriages can be driven at speeds up to 60 mph

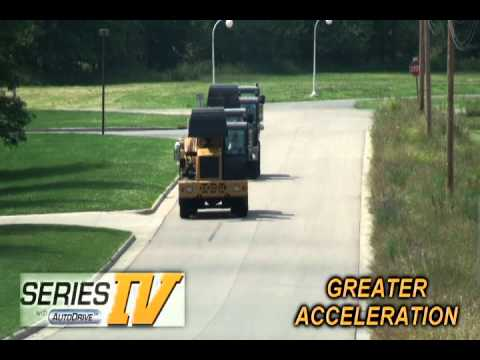

See video: Gradall Series IV Excavators Faster on the Road
