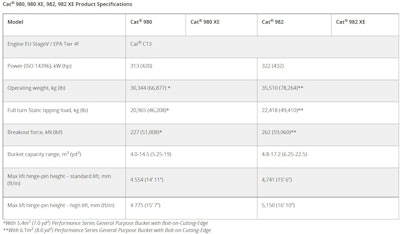

The 30,344-lb. 980 and 35,510-lb. 982 medium wheel loaders feature 420- and 432-hp Cat C13 Tier 4 Final/Stage V diesel engines that enable a full turn static tipping load of 20,965 and 22,418 lbs. and breakout force of 51,008 and 59,060 lbs.
- 980 XE and 982 XE models feature a continuous variable transmission (CVT) for increased fuel efficiency and lower maintenance costs, plus fine rimpull modulation capability and virtual gears
- Standard Cat Payload with Assist or optional Cat Advanced Payload
- Autodig with Auto Set Tires can automate the complete bucket loading cycle to deliver consistently high bucket fill factors
- Application-Profiles sets multiple machine parameters at the press of a button to optimize settings for the application
- Dashboard and high-resolution touchscreen display provide intuitive and user-friendly loader control for enhanced performance
- Seat-mounted electrohydraulic joystick steering system provides precise control with minimal arm movements
- Push-to-start system requires a valid Operator-ID to crank the engine
- Floor-to-ceiling windshield improves forward visibility of the work area, while the standard rear-vision camera and convex and spot mirrors help to enhance visibility around the machine
- Cat Detect radar alerts and a Multi-view (360°) vision system available as options
- Include extended fluid and filter change intervals, convenient access to hydraulic and electrical service centers and grouped lube points
- Remote Troubleshoot connects machine to the dealer’s service department over-the-air to quickly diagnose fault codes
- Remote Flash ensures machines operating with the most up-to-date software while working around the production schedule
- Optional Fusion quick coupler available on the 980
Learn more: Cat Rolls out Next Gen 980 and 982 Medium Wheel Loaders
