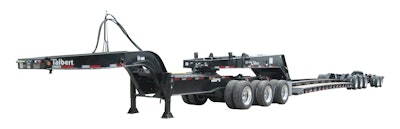

65SA Modular Trailer

Talbert's 65SA Modular Trailer has an unique design featuring a flip extension to accommodate a tandem- or tri-axle jeep dolly, allowing for maximum load configurations.

Talbert Manufacturing 65 Sa 1
Talbert Logo (vector)

Talbert's 65SA Modular Trailer incorporates multiple axle configurations and a flip extension to accommodate a tandem- or tri-axle jeep dolly, allowing for maximum load configurations.

  • 28-ft. deck length
  • Can also be designed to accommodate an additional 10- or 15-ft. section of deck, varying in type from beam to drop side
  • Can also pair with Talbert’s E2 or E3Nitro axle extension
  • 65-ton rating at half the deck length with a 16-in. loaded side deck height and 6-in. loaded road clearance
  • Individually engineered for customized axle configurations including 2+3+2, 3+3+2 or other variations
  • 60.5-in. axle spacing
  • Airlift on axle 3 and a chain lift on axles 1, 2, 4 and 5
  • Capable of running with 3, 4 or 5 axles in a row without a booster
  • Base model offers a 120-in. swing radius with connections for up to 70-in. gooseneck extension
  • Can be custom-designed to provide a larger swing radius if necessary
  • Heavy-duty T-1, 100,000-psi minimum yield steel
  • Standard with Valspar R-Cure 800 paint to prevent corrosion
