Trimble Earthworks Grade Control Platform 2.0

Version 2.0 includes new features for all machine types, along with the release of the Trimble Earthworks Assistant App for in-cab learning material

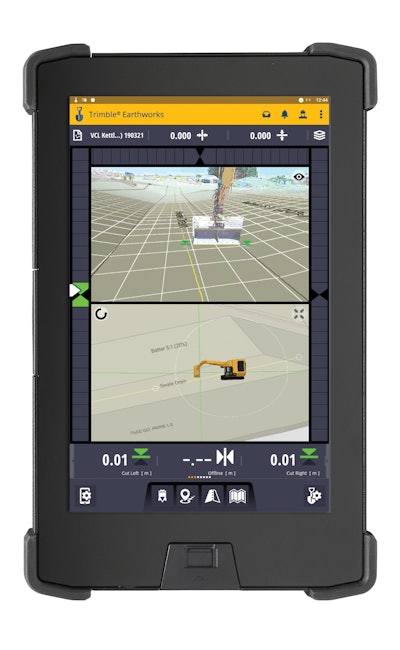

Trimble Earthworks Augmented Reality
Trimble 10859395

Improvements with Version 2.0 are designed to enable faster ROI, increase productivity and decrease training time for operators. Upgrades to the new platform include:

  • Augmented Reality on excavator in-cab displays: Using a camera mounted on the outside of the machine, operators can view 3D models in a real-world environment at a true-life scale, in the context of existing surroundings. On the Trimble Earthworks display, the model is overlaid onto the existing ground giving the operator a better understanding of the work that needs to be done.
  • Horizontal Steering Control for dozers: This allows the operator to focus on the grade and machine productivity rather than worrying about steering, reducing operator fatigue and errors. It enables the machine to follow the horizontal guidance from the 3D model, providing operators increased awareness of their surroundings, better accuracy and improved productivity with decreased overlap and fewer passes.
  • Mastless motor grader configuration:  Trimble Earthworks for motor graders mastless configuration mounts one GNSS receiver on the cab and one on the gooseneck of the machine to eliminate masts and cables traditionally located on the blade. Mastless GNSS receivers are ideal for the blade's maximum range of motion, which is needed for steep slope work and complex designs with tight tolerances. The new configuration enables contractors to decrease risk of damage to the machine, keep valuable receivers safer as well as reduce the time needed to remove and reinstall them each day
  • Integrated Trimble LOADRITE Payload Management display: This feature displays grade control and accurate payload data on one screen, increasing mass haul productivity and efficiency by preventing underloading, and improving safety by avoiding overloading. Contractors can maximize their investment in Trimble Earthworks by leveraging the versatility of these added options
  • Availability for compact grading attachments with dual GNSS, single GNSS and total station guidance options
