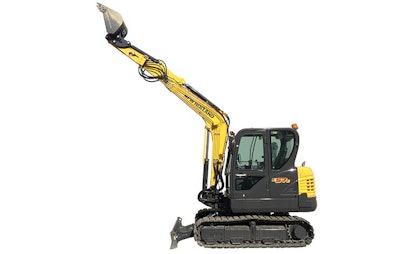

Compact Excavators - C-Series E57C
MORE POWER. MORE PRODUCTIVITY. MORE VALUE.
Make the most of every minute of your day with the power, performance and versatility of New Holland C Series compact tracked excavators. You get all the power you need from the quiet, 66.9-horsepower, Tier 4 Final engine—that’s the highest engine horsepower in this class. Even better, the E57C excavates, grades and backfills with one machine and saves fuel while doing it.
COMPACT DESIGN
The compact E57C mini digger design means you can dig, fill and grade next to buildings, footings and foundations, and in roadways and crowded urban areas. You can offset the excavator boom left or right within the operating range to match the situation.
BIG DIGGING AND GRADING PERFORMANCE
New Holland is the excavator brand to choose. With SAE bucket breakout digging force of 9,550 lbf and dig depth up to 12’6”, the E57C mini ex puts big digging power where you need. You also get top-of-class ground clearance and excellent dozer blade lift height for maneuvering and working in rough conditions.
E57C_highlights_2
EXCELLENT ALL-AROUND STABILITY
The rail and interlocking type tracks used on C Series mini excavators leads to less wear, and provides more contact points for all-around track stability.
E57C_highlights_3
SPACIOUS AND STRESS-FREE
Operator productivity has everything to do with a comfortable work environment. The spacious enclosed cab provides ergonomic controls, adjustable seating and excellent all-around visibility. Upper roof glass with roller shade allows for even better upward visibility.
E57C_highlights_4
EASY-READ INSTRUMENTS
The E57C instrument cluster is easy to read and the touchscreen monitor is intuitive to use. This cab is ready for technology with a hands-free mobile phone/Bluetooth system with optional rear camera.
AUTOMATIC SHIFTING
Let the E57C track excavator do the shifting for you. New Holland’s Auto Shift traveling system automatically downshifts when load increases to enhance travel torque on slopes and in difficult conditions, then shifts back up after the load decreases. The Auto Idle system improves fuel efficiency by automatically decreasing engine RPM when you are not using the operating levers.
E57C_highlights_5
SEPARATE HYDRAULIC CIRCUITS
Separate circuits with an optional second auxiliary 2-way circuit and an optional hydraulic quick-attach provision allow for expanded versatility and fast attachment changes. Add attachments like a thumb kit, compactor, auger or specialty bucket like a swivel bucket and your small excavator now handles even more jobs.
EASY TO TRANSPORT AND SECURE
All C Series mini trackhoes are made to be moved. Thoughtfully placed tie down holes are provided for safe transportation. The ESL (Engine Start Limit) System requires a passcode to start the engine to deter theft. You can also set the time permitted between engine starts.
E57C_highlights_6
SERVICING? NO SWEAT!
Maintenance is made simple with service doors, covers and hoods that open for complete access. You’ll find fluids are easy to check and undercarriages easy to clean. A centralized grease bank for boom swing, swing bearings and swing gear simplifies and speeds up lubrication. Extended service hours also reduce maintenance needs: • Bushings designed for extended lube intervals (250 hrs) • Extended-Life Hydraulic Filters (1000 hrs) • Long-Life Hydraulic Oil (2000 hrs)
ENGINE
Model Yanmar 4TNV98C Emissions Certification Tier 4 Final Fuel Diesel Cylinders 4 Displacement 3319 cc Fuel injection Electronic common rail Gross horsepower – SAE J1995 66.9 hp (49.9 kW) @2400 RPM Cooling Water-cooled
DRIVETRAIN
Travel speeds - 1st 2.2 kph Travel speeds - 2nd 4.2 kph Maximum traction force 52kN Gradeability 35° (70%) Ground pressure CAB - 4.69 psi
SERVICE CAPACITIES
Fuel tank 120 L Hydraulic tank - Refill capacity 70 L Hydraulic tank - Total system 120 L Engine oil w/ filter change 11.6 L Radiator 9.5 L
DIMENSIONS
Arm (standard length) 1.6 m Overall height 2550 mm Overall transport length 5900 mm Track overall length 2530 mm Track overall width 1800 mm Track shoe width 380 mm Center to center – idler to sprocket 1990 mm Upper structure ground clearance 690 mm Minimum ground clearance 380 mm Tail swing radius 1650 mm Boom swing 80° left/50° right Tail swing overhang 490 mm Operating weight 5465 kg
BLADE SPECS
Backfill blade height 350 mm Backfill blade width 1880 mm Backfill blade rise above ground 390 mm Backfill blade dig depth 590 mm
PERFORMANCE SPECS
Maximum dig radius 6150 mm Dig radius at groundline 6010 mm Maximum dig depth 3820 mm Vertical straight wall dig depth 3200 mm
