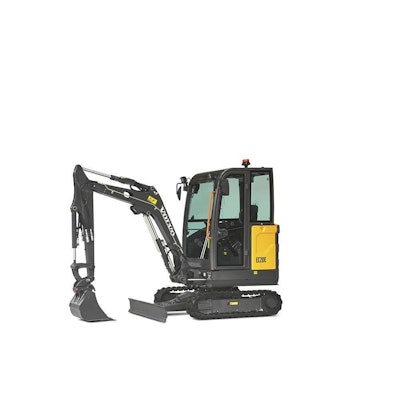

VOLVO EC20E
Easy to operate, easy to transport and easy to service, whether you rent it or own it, this 2t excavator is designed to promote low operating costs.
COMPACT VERSATILITY
Easy to operate, easy to transport and easy to service, whether you rent it or own it, this 2t excavator is designed to promote low operating costs.
ECHNICAL SPECIFICATIONS FOR EC20E
Here are the key specifications for this product model.
METRIC IMPERIAL
Engine Volvo D0.9A Gross power 12 kW Net power 11.8 kW ...at engine speed 2,300 rpm Operating weight 1,965 kg Operating weight, canopy version 1,881 kg Bucket capacity 0.03 - 0.08 m³ Travel speed, low / high 2.5 / 4.6 km/h Slewing speed 9.5 rpm Breakout force 18.3 kN Tear out force (arm breakout force) 12.3 kN Overall width 995 mm Overall length 3,707 mm Main hydraulic pump max. flow 48 l/min
LIGHT WORK OF TOUGH JOBS
Take performance to a new level, with a 13% increase in traction force and 3 120kg of combined digging forces. Add in the smooth combination of movements which make grading jobs easier, as well as the ability to work close to the blade, and completing tasks on site has never been quicker.
SMALL BUT TOUGH
The unique high-profile counterweight design is made from three strong pieces of cast iron which wrap around the rear of the machine, protecting all vital components. All-round steel panels, recessed 10mm from the counterweight, offer further protection.
SAFETY FIRST
Safety is built-in to the machine with a ROPS/TOPS/FOPS/ cab and canopy, a large entrance including high visibility step, and an orange seatbelt as standard for easy checks by site managers.
THE OPERATOR’S CHOICE
The roomy and uncluttered cab is designed to keep operators comfortable and productive, while its flat floor makes it easy to keep clean. Superior visibility, simple layout of the controls, fingertip control and large travel pedals contribute towards the great ease of operation.
THE ULTIMATE ALL-ROUNDER
With a variable undercarriage that retracts to less than 1m and expands up to 1.35m, combined with a reduced machine height to less than 2.35m, you can count on the compact excavator to deliver superior performance when working in confined spaces. The machine design ensures that the right frame corner, swing post and cylinder stay within the tracks, resulting in maximum visibility and a reduced risk of machine damage when working alongside obstacles.
TRANSPORT WITH EASE
Transportation of the machine is safe and secure, thanks to its light weight and convenient design. With automatic slew lock and four easily accessed large tie-down points on the upper frame, the machine can be safely transported on a small trailer with up to three buckets and a hydraulic breaker, while maintaining a total transport weight close to 2t.
VERSATILE PERFORMANCE
Take on many jobs with one machine thanks to a full range of purpose-built attachments, and change attachments quickly with the Volvo quick coupler. For further flexibility, the auxiliary hydraulic flows can be independently adjusted in each direction, ensuring optimal speed and control whatever hydraulic attachment you are working with. A second auxiliary line is also available as an option.
