VOLVO EC27D
DO MORE, EVERYWHERE

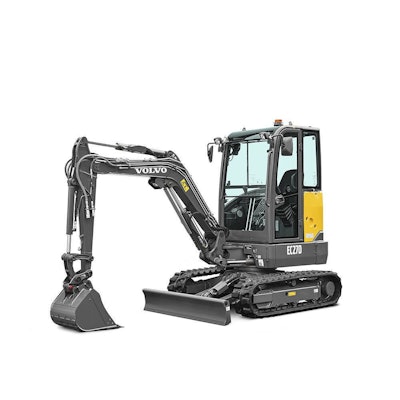

Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging forces, this rock-solid machine can handle a variety of jobs. Combining durability and ease of operation with serviceability and versatility, the EC27D is designed to stretch further, dig deeper and reach higher.
TECHNICAL SPECIFICATIONS FOR EC27D
Here are the key specifications for this product model.
METRIC IMPERIAL
Engine Volvo D1.1A Gross power 15.6 kW Net power 14.8 kW ...at engine speed 2,400 rpm Operating weight 2,730 kg Operating weight, canopy version 2,640 kg Bucket capacity 0.03 - 0.12 m³ Travel speed, low / high 2.6 / 4.8 km/h Slewing speed 9.4 rpm Breakout force 24.6 kN Tear out force (arm breakout force) 18.1 kN Overall width 1,550 mm Overall length 3,933 mm Main hydraulic pump max. flow 65 l/min Boom swing angle, left / right 72.5 / 53 degree
Built to work for you, the EC27D is an industry-leader. Optimize machine performance, productivity and versatility with Volvo’s range of durable attachments and Customer Solutions. Tailored to your business and operations - just like your EC27D - our unique, global dealer support network is built around you. Protect your profits with a long-term partnership and benefit from an array of services using Genuine Volvo Parts, delivered by passionate people.
DESIGNED TO PERFOM
Stretch further, dig deeper and reach higher with the EC27D. Based on a proven design, this compact excavator is built to perform and boost profitability. Combining intuitive operation and operator comfort with simple serviceability, this machine provides all the strength and versatility you need – because big jobs demand big performance.
