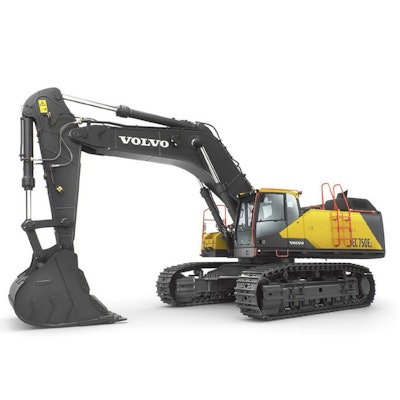

VOLVO EC750E
Rely on a superior performance from the EC750E to do the bigger jobs better, stronger and faster. Equipped with a powerful Volvo D16 engine, the machine utilizes advanced technology built on decades of experience, delivering increased horsepower and fuel efficiency – that benefits your bottom line.Rely on a superior performance from the EC750E to do the bigger jobs better, stronger and faster. Equipped with a powerful Volvo D16 engine, the machine utilizes advanced technology built on decades of experience, delivering increased horsepower and fuel efficiency – that benefits your bottom line.
TECHNICAL SPECIFICATIONS FOR EC750E
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 73,500 - 75,300 kg Gross power 385 kW ...at engine speed 1,800 rpm Bucket capacity 3.3 - 5.16 m³ Lifting capacity, along undercarriage 30,760 kg ...at reach / height 6 / 1.5 m Max. digging reach 11,460 mm Max. digging depth 7,210 mm Breakout force, SAE J1179 (Normal) 323 kN Breakout force, SAE J1179 (Boost) 342 kN Tear out force, SAE J1179 (Normal) 311 kN Overall width feet inches 4,290 mm Tear out force, SAE J1179 (Boost) 329 kN Tail swing radius 4,140 mm
BOOM AND ARM YOU CAN RELY ON
Maximize machine uptime and performance for any job application with the reinforced heavy duty boom and arm built from high strength tensile steel. Designed for maximum reliability in even the most severe conditions, steel strips are welded under the arm for added protection and various boom and arm configurations are available to suit any bucket size or application.
PROVEN RELIABILITY
Count on a solid, reliable EC750E with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.
DURABLE BY DESIGN
Achieve non-stop production with the durable and reliable EC750E. Built with protected components, including a strong frame structure, the machine can be relied on for longevity and sustained uptime in demanding applications. A built-in, heavy-duty plate is featured for additional protection to the underside of the machine.
EASY SERVICE ACCESS
Maximize uptime with quick and safer servicing. Essential maintenance points are easily accessed via the wide-opening and conveniently located compartment doors using central and surrounding walkways.
ROBUST PROTECTION
For added safety and durability, optional FOG (Falling Object Guard) and FOPS (Falling Object Protective Structure) certified cabs provide peace-of-mind for working in tough applications. The EC750E can also be fitted with a full length track guard for added protection.
CUSTOMER SUPPORT AGREEMENTS
The range of Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services. Volvo uses the latest technology to monitor machine operation and status, giving you advice to increase your profitability. By having a Customer Support Agreement you are in control of your service costs.
COMPLETE SOLUTIONS
Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine? By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.
GENUINE VOLVO PARTS
Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.
VOLVO DEALER NETWORK
Volvo has the right solution for you. By listening to your requirements, we can reduce your total cost of ownership and increase your revenue. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.
GENUINELY VOLVO
Volvo’s attachments have been purpose-built to work in perfect coordination with Volvo machines, forming one solid, reliable unit. With functions and properties ideally matched, Volvo attachments are an integrated part of the excavator for which they’re intended – delivering maximum productivity.
HEAVY-DUTY AND EXTREME-DUTY BUCKETS
Volvo’s heavy-duty and extreme-duty buckets are built using wear resistant plates, excel at digging compact materials including loose rock, hard clay and gravel. They are perfect for quarrying and mining applications and are made of reinforced high quality durable materials for a long life and superior performance. Custom made buckets are available in some regions – consult your dealer.
HYDRAULIC BREAKER
The EC750E can be equipped with a Volvo hydraulic breaker built to break even most demanding materials. With consistent power and high breaking force you’ll benefit from maximum impact and durability. Set your Volvo breaker at the right frequency to suit your application needs.
GENUINE VOLVO TEETH, CUTTERS AND EDGES
Volvo buckets are built with high tensile steel to increase the bucket’s durability, and they are available from the factory* with a wide range of teeth, side cutters, segments, and wear shrouds to protect the bucket and prolongs its lifespan in the harshest working conditions. *Attachments are available for loose order in some regions, contact you dealer for more information.
POWERED BY VOLVO
Gain more profitability and productivity in the EC750E. The Volvo crawler excavator offers the perfect combination of power and stability to handle a higher capacity in the toughest applications. Industry-leading fuel efficiency, innovative electro-hydraulic technology and ECO Mode help to optimize production and maximize your return on investment.
TOTAL CONTROL
For a more productive and fuel efficient operation, the new electro-hydraulic system puts superior control in the operator’s hands. Utilizing intelligent technology, the easy-to-use system controls on-demand flow and reduces internal losses in the hydraulic circuit.
OUTSTANDING FUEL EFFICIENCY
Achieve outstanding fuel efficiency with Volvo’s unique ECO Mode. ECO Mode optimizes the hydraulic system to reduce loss of flow and pressure – resulting in improved fuel efficiency without any loss of performance in most operating conditions.
SUPERIOR DIGGING PERFORMANCE
Get the job done in even the most demanding conditions with the EC750E’s outstanding digging force. Powered by Volvo’s advanced electro-hydraulic technology, the EC750E digs, swings and loads more materials in any application.
SOLID STABILITY
Operators can work with confidence in challenging environments with outstanding stability in the EC750E. Operate adverse terrains in the well-balanced and solid machine, which features a wide track gauge, long track length, a retractable undercarriage, and an optimized counterweight.
THE RIGHT MODE FOR THE JOB
Achieve optimum fuel efficiency and machine performance with Volvo’s unique, integrated work mode system. Maximizing efficiency, the system allows operators to choose the best work mode for the task at hand - select from I (Idle), F (Fine), G (General) and H (Heavy).
DESIGNED FOR DISTANCE
Delivering more power, better productivity and ease of moving around your jobsite, the machine’s high system pressure and durable track ensure impressive tractive force when climbing gradients and travelling over unstable ground. Experience superior access to hard-to-reach areas of your job site.
