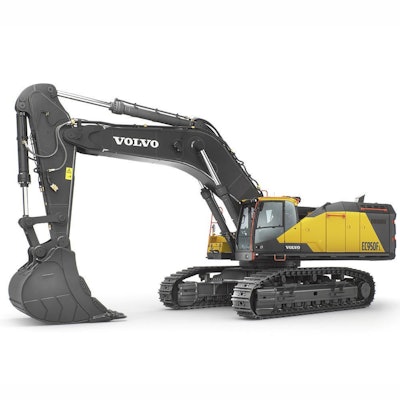

VOLVO EC950F
Perform a variety of tasks with greater speed in the heavy-duty EC950F from Volvo, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950F excavator will maximize your profitability.
BIGGER MACHINE, BIGGER RESULTS
Gain more profitability in the EC950F, Volvo’s largest crawler excavator. The 90 tonne excavator delivers a high bucket capacity for more tons per hour, achieving a fast and efficient on-site production.
SOLID STABILITY
The outstanding stability of the EC950F means operators can work with confidence in the most challenging environments. The well-balanced and solid machine features a wide track gauge, long track length, retractable undercarriage and an optimized counterweight.
POWERED BY VOLVO
Rely on a superior performance from the EC950F, featuring a powerful 450kW Volvo D16 engine, which delivers high torque at low rpm. The machine utilizes advanced technology built on decades of experience to ensure a highly productive operation.
COMFORTABLY PRODUCTIVE
For operator convenience, all machine interfaces – including the joysticks, keypad and LCD monitor – are ergonomically positioned and designed for optimum control. The low-noise and spacious cab further enhances operator comfort and performance.
BUCKETS TO MATCH
Maximize productivity with Volvo buckets, perfectly matched to your machine for ultimate digging results in all working conditions. Our range includes General Purpose, Heavy-Duty and Extreme-Duty buckets, and when your application requires something more unique, we offer Custom-Built Attachments to develop the right solution for you.
SUPERIOR DIGGING FORCE
Even in the harshest applications, the EC950F is up to the challenge. Experience superior digging force, particularly when working with hard and heavy materials, thanks to constant high hydraulic pressure delivering power to the machine when you need it.
FAST CYCLE TIMES
Cut cycle times to a minimum with the fully electro-hydraulic system. The optimized hydraulics system increases pump power for a fast and smooth operation.
COMPLETE CONTROL
For a more efficient operation, the electro-hydraulic system puts superior control in the operator’s hands. Utilizing intelligent technology, the easy-to-use system controls on-demand flow and reduces internal losses in the hydraulic circuit. What’s more, the EC950F comes with a boom-swing priority valve.
OUTSTANDING FUEL EFFICIENCY
Achieve outstanding fuel efficiency with Volvo’s unique ECO Mode and electro-hydraulic system. ECO Mode optimizes the hydraulic system to reduce loss of flow and pressure, while the integrated work mode allows operators to choose the best work mode for the task at hand: select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max).
EASY SERVICE ACCESS
Maximize uptime with quick and safe servicing. Essential maintenance points are easily accessed via the wide-opening and conveniently located compartment doors using central and surrounding walkways.
DURABLE BY DESIGN
Achieve non-stop production with the reliable EC950F, built with protected components to deliver maximum longevity in demanding applications. Outstanding machine protection is provided by features including a heavy-duty boom and arm, strong frame structure, heavy-duty underside plate and optional full-length track guard.
PROVEN RELIABILITY
Count on a solid EC950F with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.
WEAR-RESISTANT DIGGING
For a prolonged bucket lifespan, Volvo offers a range of wear parts including segments, side cutters, shrouds and teeth. When working with heavily compacted material the Pick Point tooth provides maximum penetration, and the new Volvo Tooth System enables teeth changes in minutes: simply place, push and click – it’s that easy to install.
SAFETY FIRST
Safety is built in to the machine thanks to a large entrance, including high visibility handrails and conveniently positioned steps, as well as anti-slip plates. The optional FOG (Falling Object Guard) and FOPS (Falling Object Protective Structure) provide further peace-of-mind when working in tough applications. For added visibility, the EC950F can be equipped with rear view and side cameras, or Volvo Smart View which provides 360° vision.
DO MORE
Take on a range of tasks in the hard-working EC950F. The attachment management system enhances machine versatility by storing settings for up to 20 different attachments, enabling the operator to pre-set hydraulic flow and pressure through the in-cab monitor.
EASY MACHINE MONITORING
Maximize machine uptime and reduce repair costs with Volvo ACTIVE CARE. Utilizing CareTrack data, the intelligent service provides round the clock machine monitoring and tailored customer reports, helping you to keep track of your fleet and take preventive maintenance actions.
TECHNICAL SPECIFICATIONS FOR EC950F
Here are the key specifications for this product model.
METRIC IMPERIAL
Operating weight 91,275 - 94,810 kg Gross power 449 kW ...at engine speed 1,650 rpm Bucket capacity 3.9 - 7 m³ Lifting capacity, along undercarriage 34,900 kg ...at reach / height 6 / 1.5 m Max. digging reach 12,270 mm Max. digging depth 7,120 mm Breakout force, SAE J1179 (Normal) 424 kN Tear out force, SAE J1179 (Normal) 408 kN Overall width feet inches 4,467 mm Tail swing radius 4,700 mm
