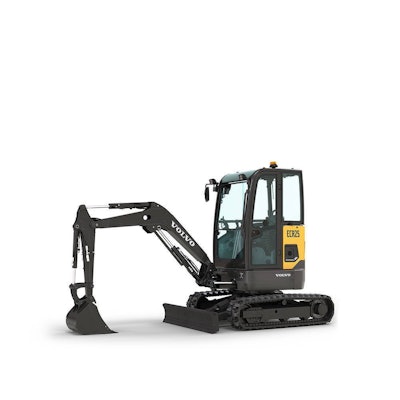

VOLVO ECR25 ELECTRIC
The Volvo ECR25 Electric excavator is a true game changer.The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.
THE HIGH PERFORMING NEW ECR25 ELECTRIC COMPACT EXCAVATOR
The Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.
TECHNICAL SPECIFICATIONS FOR ECR25 ELECTRIC
METRIC IMPERIAL
Operating weight 2,680 - 2,780 kg Maximum digging depth (short/long arm) 2,461 - 2,761 mm Maximum dump height (short/long arm) 2784 - 2957 mm Travel speed, low / high 2.4 / 4.5 km/h Breakout force 22.3 kN Tear out force (arm breakout force) (short/long arm) 15 - 17.7 kN Overall width 1,550 - 0 mm Overall length (short/long arm) 3,876 - 4,008 mm Main hydraulic pump max. flow 58 l/min Electric motor (peak) 18 kW Battery voltage 48 V Battery capacity (full package) 20 kWh On board charging time 230 VAC 16A , 5 h Off board charging time 400 VAC 32A , 50 min for 80% charge Sound pressure level (LpA) at operator's position 74 dB Sound power level (LWA) around the machine 84 dB Indicative runtime (depending on application) Up to 4 hours
ADD SILENCE
Silence. Just the word envelops you in a sense of serenity. And now you and those around you can experience what happens when you start to add silence to a compact excavator. The new Volvo ECR25 Electric, helping build the world we all want to live in.
AT HOME IN THE CITY
Our cities are becoming busier, with increasing demands to meet our infrastructure needs. The lower noise levels that the ECR25 Electric offers enable you to work anytime, anywhere – even at night in populated areas. This can lessen the disturbance inner city work can cause and reduce congestion at peak times, all the while increasing your efficiency. It also creates a more pleasant working environment for you and your colleagues with whom you can clearly communicate with whilst operating – allowing them to guide you whilst remaining at a safe working distance from the machine.
ADD CLEAN
You can find a compact excavator on every street corner. Literally. And whilst this demonstrates what a useful tool they are, it also puts them in close proximity with those around. With the Volvo ECR25 Electric you combine the all-round abilities of a compact excavator with the benefits of zero emission electric power. The world will thank you for it
GO WHERE OTHERS CAN'T
Working in confined spaces requires confidence and controllability – the ECR25 Electric has the precise and responsive hydraulic system required when such accuracy is key, meaning it can do the same job as a diesel machine but without leaving a trace. It also features a short-radius compact design making it perfect for applications like utilities, but thanks to zero emissions, also indoors in jobs such as basement groundworks and building demolition. Back outdoors, and as restricted access low emission zones become ever more common, the go-anywhere ECR25 Electric is the perfect fit. This opens up new business opportunities which in turn helps optimize utilization – great news for both end users and rental companies.
ADD COMFORT
Comfort can mean many things to many people, but one constant is the reassurance it gives. For Volvo, comfort has always meant caring for the operator, and the ECR25 Electric takes this to a new level – so the operator can focus on the task in hand.
.
