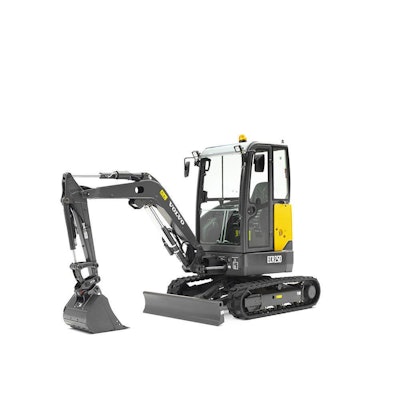

VOLVO ECR25D
The Volvo ECR25D compact excavator has been designed with mobility and performance in mind.Featuring a range of innovations engineered for effortless transportation, you'll benefit from an ideal transport weight and an integrated bucket transport system. Achieve more with Volvo.
SMALL SIZE. BIG POWER.
The Volvo ECR25D compact excavator has been designed with mobility and performance in mind. Featuring a range of innovations engineered for effortless transportation, you'll benefit from an ideal transport weight and an integrated bucket transport system. Achieve more with Volvo.
TECHNICAL SPECIFICATIONS FOR ECR25D
Here are the key specifications for this product model.
METRIC IMPERIAL
Engine Volvo D1.1A Gross power 20.9 hp ...at engine speed 2,400 rpm Operating weight 5,490 - 5,737 lbs Operating weight, canopy version 5,291 - 5,538 lbs Bucket capacity 0.04 - 0.16 yd³ Travel speed, low / high 1.55 / 2.8 mph Slewing speed 9.4 rpm Breakout force 4,554 lbf Tear out force (arm breakout force) 3,885 lbf Overall width 5′ 1″ ft in Overall length 12′ 10″ ft in Main hydraulic pump max. flow 17.7 gal/min
MAINTENANCE MADE EASY
It’s easy to keep your hardworking ECR25D up and running with worry-free maintenance. The wide-opening lockable engine hood provides clear access to all daily service points, while the minimum 50-hour interval on all greasing points saves valuable time and money. Check hydraulic oil at a glance with the Volvo patented hydraulic filter, featuring transparent housing to prevent unplanned downtime.
CONTROL COSTS
Decrease your total cost of ownership with a range of built-in features. The ideally matched Volvo engine and single variable displacement pump reduce fuel consumption, while auto-idle and auto-engine shutdown maximizes fuel efficiency, cut service costs and ensure high resale value. Controlling your costs needn’t be complicated, which is why the flat glass windows of the cab can be replaced easily and inexpensively.
THE OPERATOR'S CHOICE
As the industry’s leading operator environment, the easily accessible Volvo cab boasts superb visibility, comfortable seat, ergonomic controls, and conveniently-located cup and phone holders. The flat floor makes cleaning quick and easy, while noise and vibration insulation keep the operator fresh and focused – longer.
INTUITIVE OPERATION
Experience precise, smooth and effortless command of the boom offset and auxiliary hydraulic flows with proportional fingertip controls. The easy-to-use joystick allows you to fine-tune the maximum hydraulic flow of any attachment to ensure ideal speed and power for any task. And, with automatic two-speed travel, you can drive the machine at high speed, which is automatically reduced when more traction is required.
INTUITIVE OPERATION
Experience precise, smooth and effortless command of the boom offset and auxiliary hydraulic flows with proportional fingertip controls. The easy-to-use joystick allows you to fine-tune the maximum hydraulic flow of any attachment to ensure ideal speed and power for any task. And, with automatic two-speed travel, you can drive the machine at high speed, which is automatically reduced when more traction is required.
FAST, SAFE CHANGE OUTS
Change attachments quickly and efficiently with the pin-grabber mechanical quick coupler from Volvo. Compatible with the wide range of Genuine Volvo attachments, Volvo couplers ensure the optimum versatility for any task you choose.
UNLOCK YOUR POTENTIAL
Unlock the full potential of your operation with the ECR25D, compatible with any attachment, installed safely and easily thanks to built-in relief valves. And, with the secondary accessory circuit, you have the potential to do even more. Contact your local dealer and benefit from leading expertise and advanced attachment solutions.
KEEP YOUR VOLVO A VOLVO
We’re committed to providing a complete solution to guarantee the highest performance of your Volvo machine, including high quality Genuine Volvo Parts, extensively tested and approved because every part is vital for performance. Rely on our leading parts availability to ensure maximum uptime, extend the life of your Volvo and optimize the profitability of your business.
