SR175B

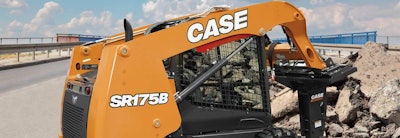

SR175B SKID STEER LOADER

The SR175B packs a lot of performance into a compact foot and provides owners with a simple and intuitive platform for dirt work and material handling. It's easy to own, operate and maintain. Optional counterweights further increase rated operating capacity (up to 1,850 pounds) for even greater lifting and carrying performance.

Visibility and Comfort
CASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. Each model features one of the industry's widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Optimal Control
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high - or to independently set loader arm and drive response to meet exact operator preference.

Productivity and Performance
At 1,750-pounds rated operating capacity and 67 horsepower, the radial lift SR175B is ideal for light- to medium-duty applications where basic earthmoving, loading and attachment operations are required. Standard (3,050 psi and 20.6 gpm) and optional high-flow (3,050 psi at 30.7 gpm) auxiliary hydraulics make it excellent for a broad range of attachments and applications.

Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance.

Why this solution:
The SR175B offers an economical entry to the skid steer market while still providing the power and performance associated with CASE B Series. Using Tier 4 Final technology that's more affordable, this solution helps keep the unit price down.

How it works:
With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces emissions, but produces more particulate matter. Then the diesel oxidation catalyst (DOC) oxidizes the machine's exhaust to create heat and further manage emissions while the diesel particulate filter (DPF) captures excess particulate matter and then burns it off through a combustion process known as regeneration, which helps maximize the life of the filter.

What this means to you:
This solution requires no new additive and provides a lower upfront machine cost, but as with all DPF systems, the filter requires replacement over time, which impacts total cost of ownership. DPF regeneration also requires additional fuel burn.
