Increase Your Accuracy With L-Shape Body Design in These Two 1-3/16 in. Rotary Hammers

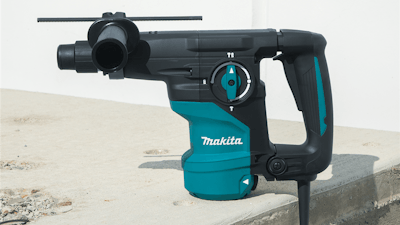

HM3001CK and HM3011FCK | 1-3/16 in. Rotary Hammers
The HM3001CK 1-3/16 in. Rotary Hammer
Makita U.S.A. Inc.
Official Makita Logo 10879976

Makita U.S.A., Inc. launched two 1-3/16” Rotary Hammers with an L-shape design for increased accuracy. The HM3001CK and HM3011FCK are ideal solutions for a range of applications including concrete forming, hanging pipe with threaded rod, fastening conduit, mounting air ducts, and more.

These rotary hammers offer performance and ergonomics to concrete formers, plumbers, electricians, HVAC techs, iron workers, general contractors and many others. Both rotary hammers accept SDS-PLUS bits and work on common anchor types such as screw anchors, drop-in anchors, and expansion anchors. They offer three modes of operation: "Rotation Only", "Hammering with Rotation" or "Hammering Only". During hammer-only applications, multiple bit angle settings allow the bit to be set at different positions for optimum performance.

1-3/16 in. Rotary Hammer (HR3001CK)

The HR3001CK features Constant Speed Control, which automatically applies additional power to the motor to maintain speed under load. For increased comfort, the rotary hammer has a vibration-absorbing back handle with rubberized soft-grip. The variable speed trigger allows the user to match speed to the application and is large for multi-finger control.

Dust extraction can be achieved with the optional Makita Dust Attachment (195173-3, sold separately) and a dust extractor. For OSHA Table 1 Complaint dust extraction, pair the dust attachment with extractors that have a filter cleaning mechanism such as VC4210L or XCV13 (sold separately).

1-3/16 in. AVT Rotary Hammer (HR3011FCK)

The HR3011FCK features Anti-Vibration Technology (AVT), an internal counterbalance system for reduced vibration. With an on-board dust extractor attachment (DX10, sold separately), this rotary hammer becomes OSHA Table 1 Compliant. The rotary hammer also features Constant Speed Control, a variable speed trigger, built-in L.E.D. light, and an ergonomic rubberized soft-grip handle with large multi-finger trigger for increased comfort.


Description1-3/16 in. Rotary Hammer, accepts SDS-Plus bits (L-shape)1-3/16 in. Rotary Hammer, accepts SDS-Plus bits (L-shape)
Max Hole1-3/16 in.1-3/16 in.
Impact Energy (ft.lbs. / Joules)2.9 ft.lbs. / 3.9 J2.9 ft.lbs. / 3.9 J
No-load RPM0 – 8400 – 840
Blows Per Minute0-4,5000-4,500
Constant Speed ControlYesYes
On-board ExtractorNoYes (DX10, sold separately)
Anti-Vibration TechnologyNoYes
Vibration Measure (m/s2)16.59.5
Overall Length14 in.14 in.
Cord Length8.2 ft.8.2 ft.
Weight (with battery, sold separately)9 lbs.9.7 lbs.
IncludesTool, Depth Gauge, Side Handle Assembly, Tool CaseTool, Depth Gauge, Side Handle Assembly, Tool Case
