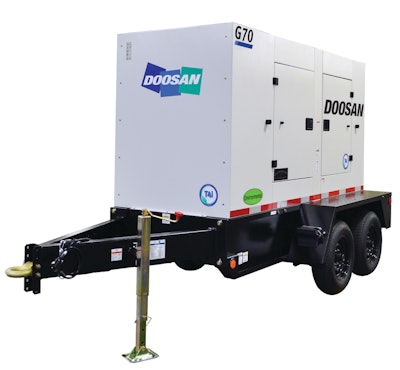

G70
The G70, G85 & G125 Generators are available with Quad Voltage which allows the operators to choose 120/240V-1Ø, 208V-3Ø, 480V-3Ø or 600V-3Ø voltage output with the simple flip of a switch. The Quad Voltage feature eliminates the need to purchase a 600-volt dedicated voltage generator model or add a 600-volt transformer to a traditional multi-voltage generator.
- Tier 4 interim-certified Cummins QSB5 diese engines with diesel oxidation catalyst aftertreatment system
- Dual frequency: operator can select 50 or 60 Hz
- Innovative airflow management reduces noise
- G85 and G125 have ECM-controlled cooling fan clutch to optimize package temperature and cooling system performance; noise levels range from 63 to 67 dB(A) at 23 ft. at 100% load
- Cool blue LED backlighting to enhance visibility and clarity
- LCD Display features analog meters, LED status indicator lamps and trouble code readouts for engine diagnostics
- Heavy-duty skid base with 110% fluid containment
- Heavy-gauge galvannealed steel enclosure finished with 13-stage powder-coat process
- Integrated running gear is rated for highway and off-road towing
- Leroy-Somer alternators feature AREP-excitation
Doosan Mobile Generators Spec Sheet
