LeeBoy 4130 Road Widener Unveiled at World of Asphalt 2019

4130 No Background
LeeBoy black 58cbfaf264f42

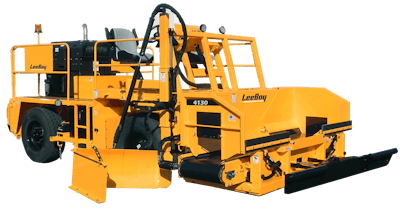

The LeeBoy 4130 road widener is a versatile machine that meets your road widening needs.

  • The narrow width design allows for shipping without a permit while shiftable conveyor and foldable hopper wings allow precise placement of material to either side of the machine
  • Operator console easily shifts from side-to-side and allows a clear view into the front hopper and of the material flow to the strike-off
  • A tilting front hopper improves trailer load angle to 14.5°
  • Contoured strike-off enables controlled spread of material width, depth and slope with minimum side draft and minimum segregation of materials
  • Extendable push rollers ensure a variety of trucks can be used to feed the hopper
  • Conveyor assembly able to shift up to 18 in. either side hydraulically
  • Conveyor speeds up to 448 fpm
  • 74-hp (55 kw) Cummins Tier 4 final engine
  • Front wheel drive axle and electric hydraulic-controlled two-speed traction drive motor
  • Width of spread up to 8-ft
  •  8-ft 6-in. shipping width, no permit required
  • 2.2 cubic yard hopper capacity

[VIDEO] LeeBoy Introduces Improved 4130 Road Widener
