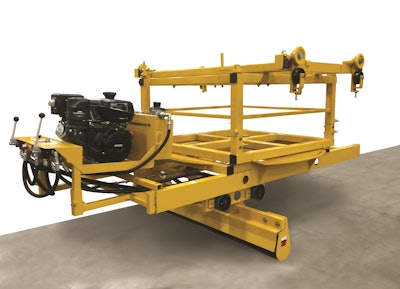

Terex Bid-Well Sidewalk Paver Attachment

The re-engineered sidewalk paver attachment is powered by its own 14-hp engine and features a self-contained design so it can be quickly mounted to virtually any Terex Bid-Well roller paver.

• Hydraulically driven, 6-in.-diameter roller spins at variable speeds controlled by the operator reaching 200 rpm
• Roller tube lengths can be customized from 4 to 12 ft.  to meet specific requirements
• Three-tier frame hanging system allows positioning anywhere on the paver’s frame
• Mid-tier frame adjustment allows the paver to be positioned at the skew angle
• Heavy duty hanger design delivers a long service life
• Lower tier of the hanging system affords fast and simple grade adjustments
• Features two control levers for operation, one to power roller on/off and rolling speed and the other to control forward/reverse roller movement
• Entire assembly advances with paver movement
• Lightweight design allows the unit to be easily moved from paver to paver
• Simple, one-worker operation
