Minnich Dust Collection System for Concrete Dowel Pin Drills

Uses Venturi-style suction and manual or automatic purge control to remove dust from the air as the operator drills

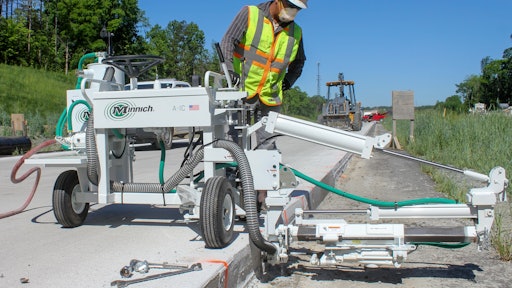

Minnich A1 C Dust Collection 2
Minnich 10950440

This canister-style dust collector utilizes Venturi-style suction and manual or automatic purge control to remove dust from the air during concrete drilling.

  • Can be retrofitted to any existing Minnich drill and can be adapted to fit other dowel pin drill makes and models
  • Comes with drill rod guide collection boots, a 5-gal. pail-type hopper and up to 20 ft. of vacuum hose per drill
  • Each canister accommodates up to two rock drills and offers a 60 sq. meter filter area
  • Requires 40 (hydraulic drill) to 50 scfm (air drill) and 60 to 110 psi
  • Meets requirements for dowel pin drills found in Table 1 of OSHA's respirable crystalline silica standard when used with appropriate filter
  • Single canister is 48 in. tall by 17 in. deep by 40 in. wide; weighs 198 lb.
  • Double canister is 48 in. tall by 18 in. deep by 40 in. wide; weighs 390 lb.
  • Triple canister is 48 in. tall by 18 in. deep by 58 in. wide; weighs 598 lb.
  • Air flow: 50 cfm (single); 100 cfm (double); 150 cfm (triple)
  • Max vacuum: 60 psi

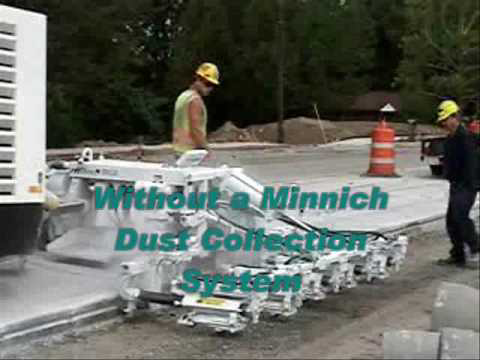

Video: Minnich Dust Collection System
