Chicago Pneumatic Introduces Dust Collection System

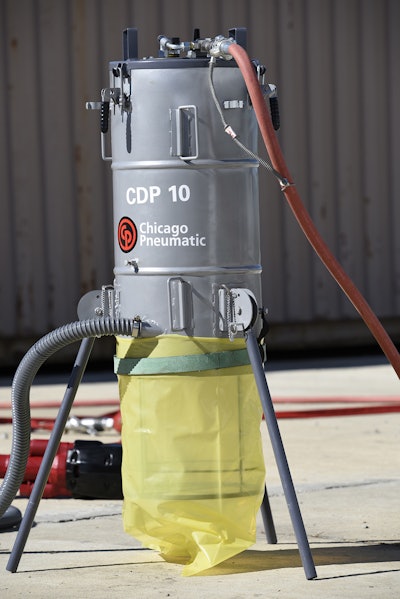

Chicago Pneumatic Power Technique (CP) features the new CDP 10 dust collection system kit to help protect workers from exposure to crystalline silica during common construction tasks. The kit includes a vacuum suction unit, 21-foot suction hose, universal shroud connector, three dust collection bags and three bellows.

• The vacuum dust collection method of the CDP 10 uses the Venturi principle to create a vacuum using compressed air.
• The system consumes 25 CFM per tool and has vacuum suction capacity of just over four feet of water.
• The dust collection system’s filter has the capacity of 99.58 percent filtration of exhaust air, keeping the environment clean and reducing the exposure level for operators.
• It is equipped with a filter cleaning mechanism to enhance the filter life, while a vacuum indicator notifies the operator of a clogged filter.
• At the bottom of the unit are retractable strainers, holding a recyclable eco-friendly dust collection bag in place and preventing it from being sucked in. This setup allows enough suction space for the cyclone method in collecting dust.
• The plug and play setup of the CDP 10 is simple, taking less than a minute. The standalone unit also comes with a foldable tripod stand for easy transportation.
• To reduce the stress on operators while carrying the 55-pound unit around the jobsite, the dust collector features handles to easily lift and manoeuvre.
• The unit is also available as a trolley-mounted version, which can store two working tools (chisel, moil point, etc.) and a pneumatic tool up to 90 pounds.
