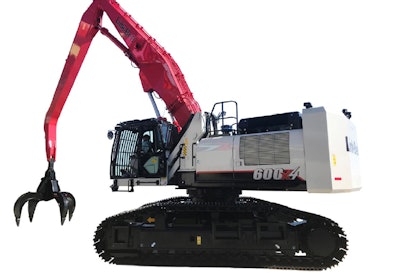

Link-Belt 600 X4 Material Handler

The Link-Belt 600 X4 Material Handler is purpose-built for material handling and demolition applications

Linkbeltpr 600x4materialhandler
Lbx Link Belt Excavators

The Link-Belt 600 X4 Material Handler is purpose-built for material handling and demolition applications, featuring a two-piece attachment with hose burst check valves.

  • Electronically-controlled 362-hp, Tier 4 Final Isuzu engine
  • Straight boom and droop-nose arm
  • Hydraulics package with Spool Stroke Control (SSC) technology to achieve maximum control and productivity
  • Two electrically-controlled Kawasaki pumps and one Kawasaki gear pump for pilot controls
  • Standard air suspension seat with +/- 5 degree tilt
  • Arm rests move proportionally with the console
  • Hinged OPG Level 1 front guard, ISO guard rails and mirrors are standard
  • Fixed OPG Level 2 front guard and FOPS Level 2 top guard are available
  • Hydraulic Cab Riser features a higher operator view of 19 ft. 4 in. at eye level height
  • 7-in. LCD color monitor
  • Standard rear-view camera
  • Wide Angle Visual Enhancement System (WAVES) can be added
  • Dual LED cab lights; a cup holder and storage areas for cellphones and other small items; joysticks with easy-to-hold grip and radio mute buttons; MP3 audio input, Bluetooth-enabled for hands-free communication
  • RemoteCARE GPS telematics system for 24/7 remote monitoring and security
  • Heavy-duty, high-wide undercarriage, oversized turn table and larger drive motors
  • 29.5-in. 3-Bar Steel Grousers, Carbody Belly Pan, Double Track Guard and Sealed Link Chain are standard
  • Operating weight: 126,216 lb.
  • Swing torque: 111,000 lbf.-ft.
  • Swing speed: 9.1 rpm
