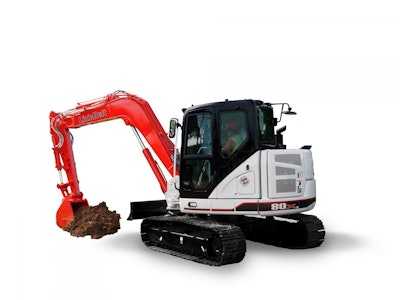

EXCAVATORS MIDI-EXCAVATORS CX80C MSR (SWING BOOM)
THE PERFECT EQUIPMENT FOR:
AgricultureAGRICULTUREUrbanURBANInfrastructure
INFRASTRUCTURESPECIFICATIONS
ENGINE
Engine ModelISUZU AP-4LE2XRated flywheel horse power (ISO 14396)41.2 kW at 2000 min-1Maximum torque (ISO 9249)193 Nm at 1800 min-1Emissions levelTier 4 Final / Stage IIIBPiston displacement2179 cc
HYDRAULIC SYSTEM
Max oil flow2 x 74 litres/min at 2000 min-1Working circuit pressure Boom/Arm/Bucket29.4 MPaSwing circuit22.6 MPaTravel circuit29.4 MPaPilot pump (1 gear pump) Max. oil flow18 litres/minWorking circuit pressure3.9 MPaBlade pump (1 gear pump) Max. oil flow35.4 litres/min at 2000 min-1Working circuit pressure23.5 MPaMaximum swing speed10.4 min-1Work mode display(SP, H, Auto)
PRIMARY AUXILIARY CIRCUIT (Hammer/ Multipurpose)
Max oil flow2 x 74 litres/min at 2000 min-1Maximum pressure29.4 MPa
SECONDARY AUXILIARY CIRCUIT (LOW FLOW)
Max oil flow35.4 litres/min at 2000 min-1Maximum pressure23.5 MPa
PERFORMANCE
Travel speeds (Automatic travel speed shifting) High5.1 km/hLow3.2 km/hBoom swing left80 degreeBoom swing right45 degreeDrawbar pull59.5 kNGrade-ability70% (35 degree)
CAPACITIES
Fuel tank120 lHydraulic system96.3 lEngine oil11.5 lCooling system12.2 l
