Cardinal Scale Manufacturing Company’s USA-made 201ADMIX is a weight-based admixture dispensing system designed for the ready mix and concrete products industries. The scale may be calibrated by your choice of weight or fluid ounces. The 201ADMIX’s static and dynamic trim help provide accurate valve discharge cut-offs for increased accuracy.

  • Dispense fluids by weight, pulse, independently

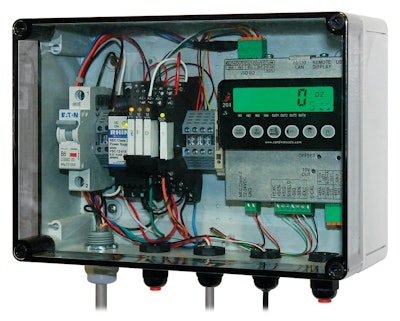

  • Made in the USA, 201ADMIX controller with LCD
  • Polycarbonate box with clear-smoke cover
  • Relays
  • Scale (bottle-mounting bracket and load cell)
  • Load Cell Capacities Available: 50-lbs., 100-lbs., and  200-lbs.
  • The company says the  weight based system offers:
    • Higher degree of accuracy
    • Static and dynamic trim
    • Eliminates flow meter
    • Eliminates zero probe
    • Eliminates overfill probe
  • An SD memory card may be used to record all of the weights or pulses which provides historical data
  • Four programmable digital outputs are included for easy connectivity with a computer, PLC, or other smart device
  • 4 Output Relays which are typically configured as:
    • 1 relay for Pulses (based on the weight requirement)
    • 1 relay for Zero
    • 1 relay for Overfill to shut down tank operations
