As electrification continues to advance in the heavy equipment and vehicle industries, so do the battery technologies available to power them. With these new battery technologies have come increases in power output as well as new applications in which they are employed.
Nikola Motor Co., for instance, announced in November 2019 it was introducing a new battery technology with energy density of 1,100 watt-hours per kg on the material level and 500 watt-hours per kg on the production cell level. The prototype of this battery removes binder material and current collectors, enabling more energy storage within the cell.
Use of the battery in Nikola’s battery electric trucks could enable them to drive 800 miles fully loaded between charges, and reduce their weight by 5,000 lbs. compared to the competition if the same battery size was kept. Nikola’s hydrogen-electric fuel cell trucks could surpass 1,000 miles between stops and top off in 15 minutes.
Case Construction EquipmentMourad Chergui, product manager at Delta-Q Technologies, says battery technology has reached a point at which it allows heavy equipment to have the same duty cycle — typically an eight-hour shift — as traditional power sources.

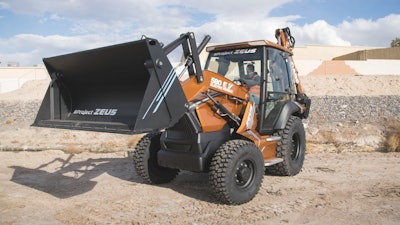

Case Construction Equipment’s fully electric backhoe-loader, introduced at CONEXPO-CON/AGG last year, is a demonstration of this capability. The 580 EV, also known as Project Zeus, is powered by a 480V, 90-kWh lithium-ion battery pack that supports most common eight-hour workday applications on a single charge.
Advancements like these show that battery technologies are overcoming many of the concerns regarding range associated with electric vehicles and equipment.
More Manufacturers Enter the Battery Space
Development of electric powered equipment and vehicles will continue to increase in future. As such, over the past several years, many component manufacturers have begun diversifying their product portfolios to include batteries.

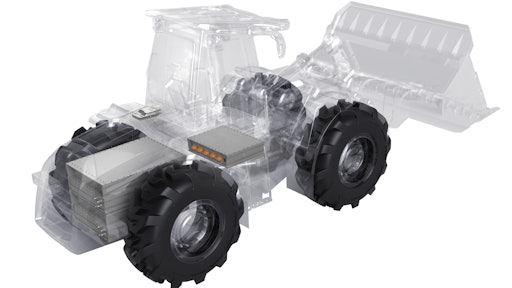

In November 2019, Webasto, which is probably best known for its heating and cooling products, introduced its commercial vehicle (CV) Standard Battery System. Designed for scalability and configuration flexibility, the battery pack provides 35 kWh of energy and allows up to 10 packs to be combined to provide enough power for larger equipment applications.
Josh Lupu, director of marketing at Webasto, says the company started investing in high-voltage technology around 2010 due to the increased interest and future growth it was seeing in regards to hybrid and electric vehicles. “We created the high voltage heater. That was our first entry into e-mobility or the electric powertrain,” he says. “That was the start of Webasto diversifying into non-combustion powertrains.”

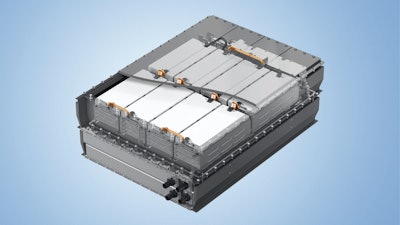

In 2016, the company started developing charging stations and acquired a charging station company in 2017, which is also when it started developing the CV battery system, a nickel-rich NMC (nickel manganese cobalt) prismatic cell battery. Webasto chose the NMC chemistry because it provides high energy density as well as a long life. “We have a lifetime of 3,000 cycles or eight years,” says Lupu. “This means if you fully discharged the battery if it was at 100%, and then fully charge it back up to 100%, you could do that every day for eight years.”
Briggs & StrattonIn reality, that is not how people will use the battery; no one usually fully discharges and recharges it. But it’s been verified that it can withstand that type of use. “It's very robust and made for extreme use cases,” says Lupu.
Briggs & Stratton is one of the latest engine manufacturers to announce its entry into the battery development market. “We've identified that there's a gap in the marketplace of people that are powering units anywhere from 0.5 kWh up to 20 kWh,” says Christine Davison, senior manager marketing, Engines & Power. “We believe there’s a big opportunity there.”

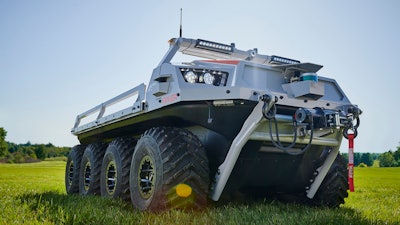

She notes there are some manufacturers offering lead acid batteries in that power range, but not lithium-ion technology. The company wanted to offer a flexible lithium-ion solution for this power range, and so developed the Vanguard Commercial Lithium Ion Battery pack.
In addition, the company saw where the markets it serves were heading and wanted to position itself to be more agnostic about the types of power systems it offers. Key markets it is looking at for the battery pack include construction, agriculture and traditional outdoor power equipment such as lawn mowers. Equipment that would be used inside a building would benefit from using the technology to protect the health and safety of workers as there would be no exhaust fumes emitted, as would otherwise be the case with a gasoline engine.
Davison says the system is customizable to an application. “Although we first launched with a 5-kWh 48V pack, as we move forward, and as more products and more customers are being developed, those packs can be customized to an application.”
An advantage of Briggs & Stratton’s technology is that it only uses the power that is needed for a specific application. “You’re not using anything extra, you’re not paying for power you don’t need, which is a huge advantage for the OEMs we will be working with,” says Davison.
A Complete, Modular System
Creating a system that is modular and can be customized to an application is beneficial for OEMs looking to develop electric vehicles. Having the ability to choose how many battery packs to use in a machine based on its power needs helps ease their design process.
Webasto offers a plug-and-play system that reduces development time, cost and resources for OEMs. “We've had several customers want to use this system because they can have one supplier, one battery pack that they can use across their full product line,” says Lupu. “They can use one [battery pack] on this piece of equipment, two on another piece of equipment and 10 on yet another, which significantly simplifies their R&D.”

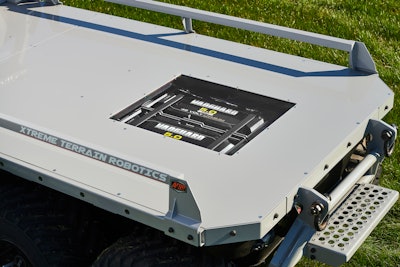

Providing a complete system is also a key aspect. Davison says the Vanguard battery comes with the battery management system — which ensures all components work together properly and safely — as well as the controller and charger.
Briggs & StrattonIn addition, she says Briggs & Stratton is able to help manufacturers with the design and integration of the battery. The company does all of the assembly and testing of the battery system, which helps reduce development time and costs. “Putting together the battery cell module and integrating it with the charger, battery management system, controller and motor is really where we deliver value because we’re bringing that whole system together to work [in the OEM’s application],” says Davison.
Webasto also provides a complete system consisting of the battery and vehicle interface box (VIB), which Lupu says is the brains of the system. It will load balance, houses the charging interface, constantly monitors the cells and keeps everything in a safe operating range. Proprietary software developed in-house by Webasto is used in the VIB to recognize how many packs are hooked up and if they’re being run in parallel or series.
WebastoThe same box and packs can be run at 400V if connected in parallel or at 800V if connected in a series. “That’s significant because it allows the manufacturer to be flexible in their design process,” says Lupu.
It also prepares OEMs for the future, since Webasto knows voltages will start to increase in the coming years. Right now, 400V is the norm for high-voltage electric powertrains. But Lupu says that it will eventually rise to 800V, with many manufacturers already developing systems in this power range. “When you do that, you're able to achieve more power with less current, which means you're running cooler, can use thinner gauge wire and can charge the system faster,” he explains.
The VIB has provisions for both the standard 240V AC , level 2 charging (J1772) and DC fast charging. “It is completely up to the manufacturer which they choose to use in their application,” says Lupu.
The battery is liquid cooled, with coolant paths within the battery enclosure using a 50/50 water-glycol mix to cool it. Manufacturers can choose to use one of Webasto’s many battery cooling systems, one of which was developed specifically for the CV Standard Battery. It is an all-in-one heating and cooling system capable of cooling the battery system with a capacity of 5 kW. Liquid heating capacity is in the range of 7 to 10 kW and provided by the company’s high-voltage heater. Sensors continuously monitor the temperature of the battery cell and command the use of heating or cooling to keep the system in a safe operating range.
Integrated Battery Charging
In talking with OEMs and end users, Chergui says there is a drive toward having less maintenance on batteries. As such, they are seeking higher power levels, faster charging, as well as the ability to utilize public charging infrastructure.
The Vanguard Battery Packs are serviceable, Briggs & Stratton points out, which makes them unique within the market and will be beneficial for end users.
Regarding charging technology, the trend is moving toward integration of battery chargers into a piece of equipment. Onboard charging makes it easier for end users to charge the machine anywhere instead of having to go back to a home base and charge for several hours overnight, which Chergui says is typical with lead acid batteries. “I would attribute [the shift] to the emergence of lithium battery applications, which require higher input rates,” he adds. “Having the equipment on board is definitely the way to go.”

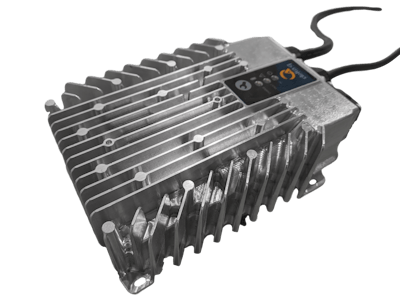

Growing use of lithium batteries led Delta-Q to develop its latest charger, the RQ350, which is the company’s smallest and lowest powered charger at 350W. “When an OEM converts from a lead acid to a lithium battery, the vehicle and battery is much lighter,” says Chergui.
Delta-Q TechnologiesThe lithium battery is 20% to 30% more efficient, and thus smaller than its lead acid counterpart, which allows the charger to be more compact and smaller, as well. Because of this, their use in various off-road applications, particularly more compact equipment, is growing.
Global emissions regulations and efficiency improvements will continue to drive development of electric power systems, and thus battery technology, in the coming years. “We’re going to see a lot more normalization of electrification and a lot of the components are going to be driven toward [becoming] a commodity item,” says Kevin Rhodes, chief engineer of Electrification at AVL. “That’s important because right now, a lot of things have to be custom made.”
He believes components such as chargers and inverters will become standardized as power levels and use cases become more normalized. This will help drive down costs. It will be the same with battery technology, which is currently a large cost driver of an overall electric-powered system.
Rhodes expects more battery chemistries to continue being developed and more manufacturers will get into the battery space. “I think right now is really a great time to get into that space because it's just going to continue moving very rapidly,” he states. “And if you're not getting on board with it right now as a company, you're going to be left behind to some extent. You really need to at least be advancing your knowledge of that and be ready for the changes that are going to be coming in the next five, 10, 20 years.”
