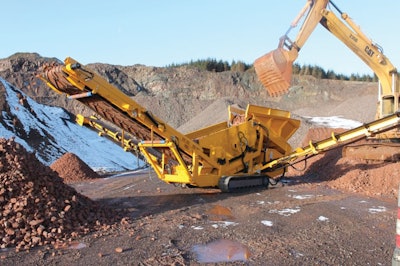

TS-409 Track Screening Plant

Irock Crushers Ts 409 Scalping 10837681
Irock White 10784522

The TS-409 is the smallest screening plant in its class and features an open-style hopper feeder capable of accurately and consistently sizing materials up to 12 in. in size.

  • Designed for small-to mid-size producers needing a compact screening plant
  • Suitable for topsoil, mulch, sand and gravel, asphalt, coal, limestone and demolition debris
  • Hopper has 5.02-cu.-yd. capacity and 42-in.-wide belt feeder conveyor
  • Two 9-ft. by 4-ft. decks for total of 72 sq. ft. of screen area
  • Produce and sort products in up to three different sizes
  • Decks are interchangable
  • 400-mm-wide crawler tracks
  • Onboard 42-in. oversized Chevron belt conveyor with 11.5-ft. stockpiling height
  • Entire working unit measure just over 41 ft. long
  • 66.2-hp Deutz engine
  • Process materials at a rate of up to 300 tph
  • Can be transported on a trailer
