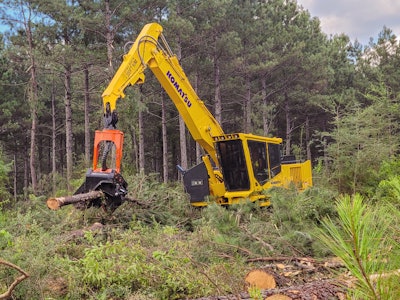

Komatsu, a manufacturer of industrial vehicles and construction platforms, has launched the PC230F-11 processor for demanding forestry projects. With reach of up to 29 ft. (8,951 mm), the maneuverability of the PC230F-11 helps drive jobs on the field. This machine features a large swing circle for moving trees, as well as a rugged undercarriage.
Performance
When operators are working in high-debris conditions, a wide-fin radiator protected by heavy-duty forestry screens and a variable pitch reversing fan helps manage airflow. Operators can adjust to a sudden change in load weight with the auto power max feature. It automatically senses the difference and reacts with a seven-second burst of additional horsepower to help pull the trees through, during the delimbing process.
The processor is powered by a Komatsu SAA6D107E-3 Tier 4 Final engine. Operators can minimize refueling with additional fuel storage on the PC230F-11. The tank is in the rear of the carrier and built into the counterweight, delivering double the fuel capacity. Because the fuel tank is located in the rear, operators can store an extra five-gallon bucket of oil, extra chains and other tools on the side of the machine.
Cab Design
To reduce operator fatigue, the PC230F-11 has a climate-controlled cab equipped with Bluetooth technology. The cushioned air-suspension seat can be heated or cooled. A solid exterior protects against falling limbs with a 1.26-in. thick (32 mm) polycarbonate front window and metal designed to withstand demanding environments. The PC230F-11 features heavy-duty service undercover guards and rear compartment doors, as well as a right corner guard with a standard tree deflector.
General Specifications
- Net horsepower: 197 hp (147 kW) @ 2,050 rpm
- Operating weight: 67,516 lbs. (30,625 kg)
- Swing torque: 58,334 ft.-lbs. (8,065 kg-m)
