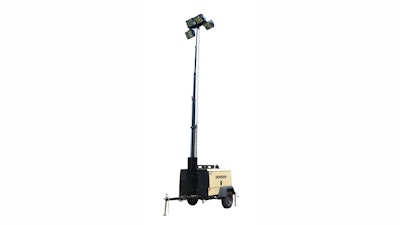

Doosan L20 Light Tower and 20-kW Mobile Generator

Doosan L20 Light Tower Generator 542c52bf7be42
Doosan Portable Power Vertical Logo Color Dealers Only 01 69p9cjj0cbogi

The L20 hydraulically powered vertical mast light tower features a 32-hp Mitsubishi diesel engine and 20-kw generator, supplying sufficient power to light a wide area and provide up to 16 kw of energy.

  • Four 1,000-watt metal halide lamps mounted to a telescoping mast offering 360° rotation and full extended height of 25 ft. 8 in.
  • Each lamp adjusts with locking pin system; each light fixture can be maneuvered independently
  • Light head can be adjusted horizontally and vertically
  • Generator powered by Isuzu 4LE2 direct injected engine with single-phase Leroy Somer alternator
  • Delivers up to 80 amps at 240 volts and 160 amps at 120 volts when lighting system is not in use
  • Standard auto start/stop capability and optional AutoLamp feature for automatic light engagement from dusk to dawn
  • Standard 27-gal. or optional 50-gal. fuel tank
  • Operates at 69 dBA
  • 110% fluid containment standard and includes removable panel for radiator fill, ooded exhaust cover and central drains
  • Detachable drawbar for trouble-free towing
