SAF-HOLLAND introduces its 13.5k capacity, NEWAY LSZ Auxiliary Steerable Lift Axle Suspension System.
With a 17.5-in. package size, the LSZ is a minimum of 4 in. up to 10 in. shorter than comparable lift axles. This rugged, yet compact, design offers customers application versatility, enables easy installation and service, and provides extra frame rail space for component packaging and options.
The Super Chamber lift on the LSZ provides a quick and reliable 4-second lift speed. The Super Chamber position provides increased protection from road hazards and easier access for servicing.
The LSZ’s rolling lobe air springs are positioned at an angle, delivering a superior spring rate for increased stability and ride quality. Its parallelogram design maintains precise steering geometry while reducing tire wear.
The rugged design utilizes a kingpin assembly with spherical bearings, which eliminate thrust bearings that often require shimming and reaming. As a result, service requirements are greatly reduced.

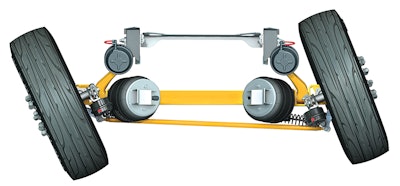

NEWAY LSZ Auxiliary Steerable Lift Axle
NEWAY LSZ Auxiliary Steerable Lift Axle Offers Compact Design
March 11, 2014
