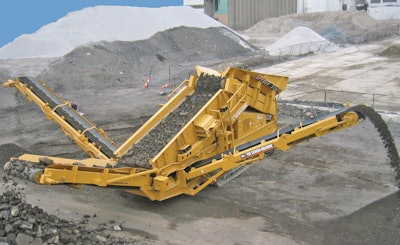

Spyder 516T Screening Plant

Spyder 516T Double Deck Screening Plant is designed to screen rock, soils, sand and gravel, and construction and demolition materials producing three different sizes of product simultaneously

Spyder516tscreeningplant 10085228
Screen Machine Industries Logo 11075843

The Spyder 516T Double Deck Screening Plant is a patented aggregate screening plant designed to screen rock, soils, sand and gravel, and construction and demolition materials producing three different sizes of product simultaneously.

  • Feed from three sides
  • 5- by 16-ft. double deck two bearing screen
  • 5- by 14-ft. bottom deck
  • Adjustable screen angle
  • 48-in.-wide oversize conveyor with impact bed and 9-ft. 4-in. discharge height
  • 24-in. midsize conveyor with 13-ft. discharge height
  • 36-in. fines conveyor with 12-ft. 6-in. discharge height
  • 1/2-in.-thick grade 80 steel hopper walls
  • 48-in.-wide impact bed belt feeder; optional apron feeder
  • 110-hp Cummins QSB 4.5 Tier 3 diesel engine
  • Heavy-duty tracked undercarriage
  • Cattron wireless remote control operation
  • Patented Smooth Start Technology
  • Independent hydraulics
